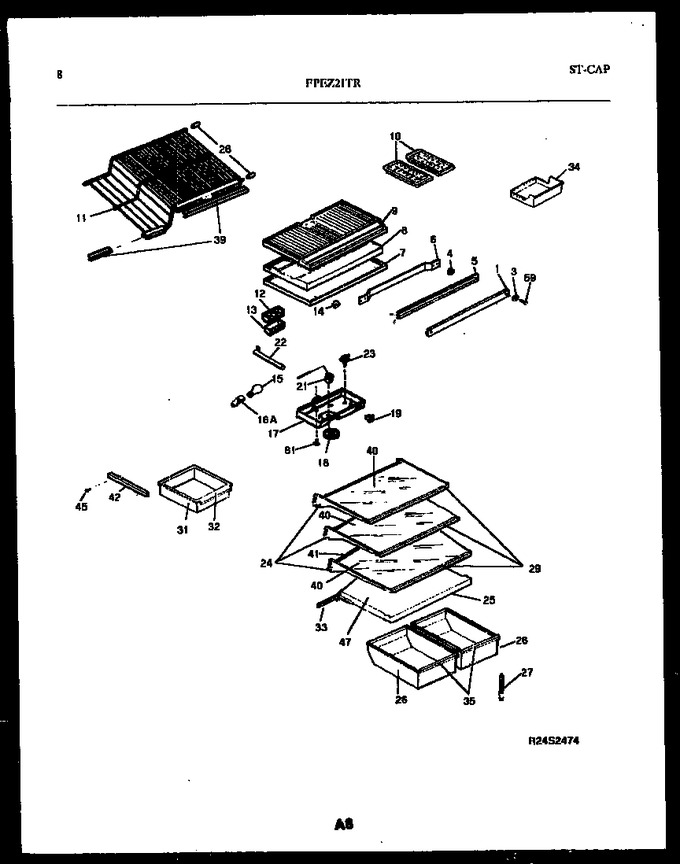

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200370 | Mullion, Almond |
|
- | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 5303200464 | Spacer-mullion Mtg, Steel |
|
- | |||||
| 5 | 5303210351 | Heater-mullion |
|
- | |||||
| 6 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 7 | 3019038 | Top Panel-refr |
|
- | |||||
| 8 | 5303019039 | Divider, Styrofoam |
|
- | |||||
| 9 | 5303210641 | Bottom Panel-frzr |
|
- | |||||
| 10 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 11 | 3019033 | Shelf-freezer Step |
|
- | |||||
| 12 | 5308014667 | Deflector, Air |
|
- | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light/lamp Bulb |
|
- | |||||
| 17 | 3018895 | Box, Control |
|
- | |||||
| 18 | 3018893 | Knob, Temp Control |
|
- | |||||
| 19 | 5303018896 | Switch, Energy Saver |
|
- | |||||
| 21 | 5303018894 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 23 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303209276 | Frame-full Shelf, Cantilever, (2) |
|
- | |||||
| 24 | 5303211349 | Frame, Meat Kpr Shlf, Cantilever |
|
- | |||||
| 25 | 5303019035 | Cover, Crisper Pan |
|
- | |||||
| 12A | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 13A | 5303200590 | Extension, Air Deflector, With Insulation (non-illustrated) |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17A | 08016567 | Nut-anchor, Control Box Mtg (non-illustrated) |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 25A | 3018984 | Trim, Crisper Cover (non Illustrated) |
|
- | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 8A | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 | |||||
| 8B | 3019040 | Harness-wiring, Control/divider (non-illustrated) |
|
- |
