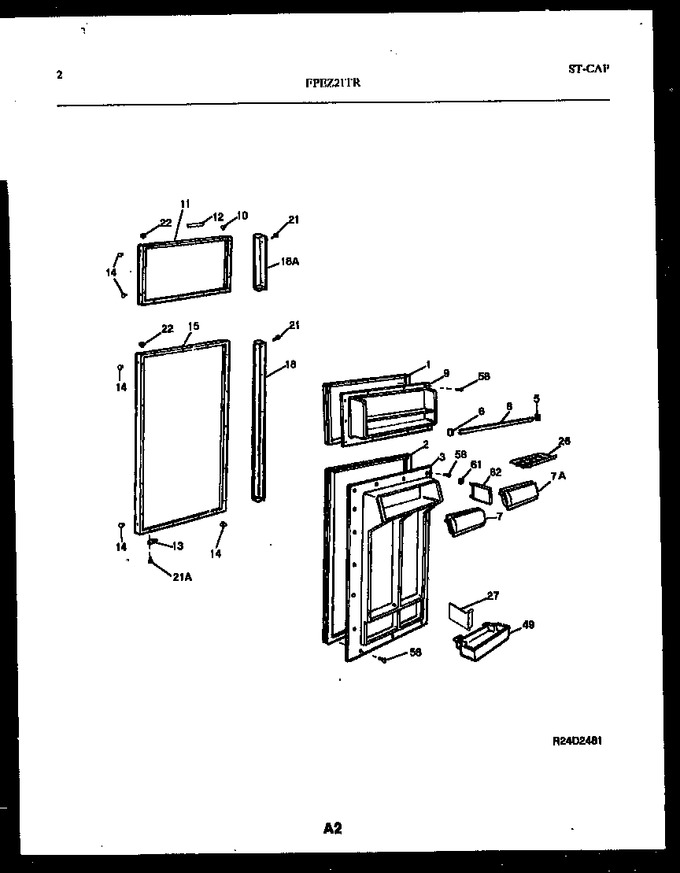

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308017483 | Gasket, Frzr Door, Magnetic |
|
- | |||||
| 2 | 5308017487 | Gasket, Refr Door, Magnetic |
|
- | |||||
| 3 | 5303279802 | Panel, Inner Door, Refr |
|
- | |||||
| 5 | 5303323480 | Support, Door Rack, Rh (Replaces: 5303017378) |
|
$ 14.18 | |||||
| 6 | 5303323481 | Support, Door Rack, Lh (Replaces: 5303017381) |
|
Immediately | $ 14.18 | ||||
| 7 | 5303284385 | Door, Dairy, Lh |
|
- | |||||
| 8 | 3017419 | Rack, Door, (2) |
|
- | |||||
| 9 | 3019030 | Panel, Inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916115 | Panel, Frzr Door, White |
|
- | |||||
| 12 | 5303275751 | Nameplate Assy, White |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916952 | Panel, Refr Door, White |
|
- | |||||
| 18 | 5303272661 | Handle-door, Full-length, White |
|
- | |||||
| 21 | 5303272566 | Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Whit |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 26 | 5303018635 | Tray, Egg |
|
- | |||||
| 27 | 5303279907 | Snugger-dr Rack/bin |
|
- | |||||
| 49 | 5303284383 | Bin, Door, Gallon, (4) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 61 | 5308017047 | Nut, Self-threading, 1/8 |
|
- | |||||
| 62 | 5303279801 | Divider, Dairy |
|
- | |||||
| *64789 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 15A | 5303275660 | Brace, Cross (non Illustrated) |
|
- | |||||
| 18A | 5303272793 | Handle-door, White |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 7A | 5303284384 | Door, Dairy, Rh |
|
- |
