01 - 4`` Backguard


02 - Electrical Components Lower Section


03 - Lower Storage Drawer


04 - Page 1


05 - Side Trim (stk) Parts


06 - Upper Control Panel Parts


07 - Upper Oven Electrical Components


08 - Upper Oven Parts

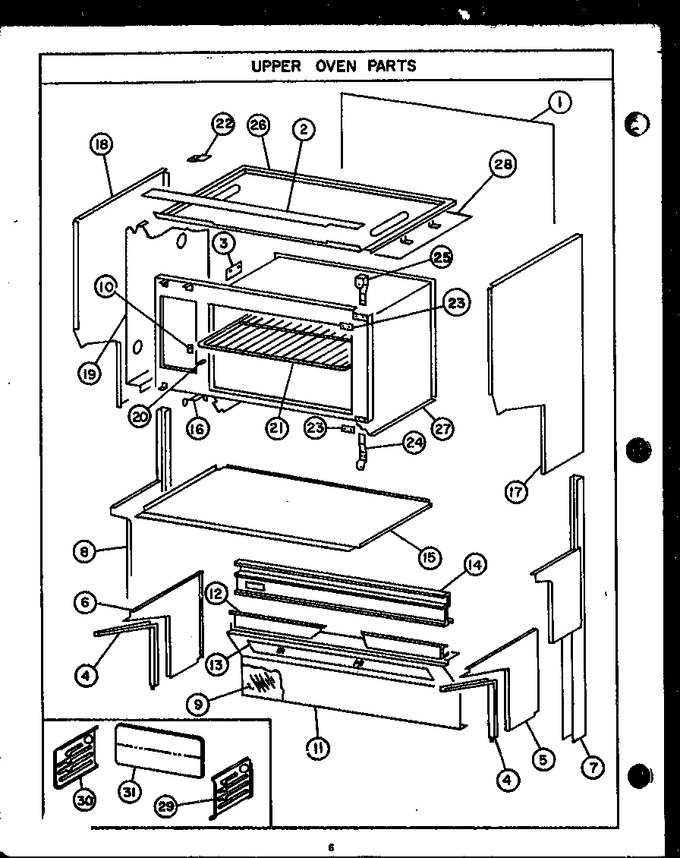

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	94404		Backplate		Appelez-nous	-
2	73061		Catch		Appelez-nous	-
3	DE81-02207A		Cover Plate, Broil   (Replaces: 72785)				$ 109.64
4	78043		Trim Rail, Side Braces		Appelez-nous	-
5	77996H		Inside Side Brace, R.h. Autumn		Appelez-nous	-
5	77996W		Inside Side Brace R.h. White		Appelez-nous	-
5	77996A		Inside Side Brace, R.h. Antiqu		Appelez-nous	-
5	77996G		Inside Side Brace, R.h. Avocad		Appelez-nous	-
6	77997A		Inside Side Brace, L.h. Antiqu		Appelez-nous	-
6	77997H		Inside Side Brace, L.h. Autmun		Appelez-nous	-
6	77997W		Inside Side Brace, L.h. White		Appelez-nous	-
6	77997G		Inside Side Brace, L.h. Avocad		Appelez-nous	-
7	77658		Heater Fuse				$ 11.61
8	77659		Support Channel Assembly, L.h.		Appelez-nous	-
9	Y0095675		Sub 68563 Insulation - 30``		Appelez-nous	-
10	Y75826		Plate, Door Strike		Appelez-nous	-
11	78082A		Splashplate W/ Glass Antique C		Appelez-nous	-
11	78082W		Splashplate W/glass White		Appelez-nous	-
11	78082H		Splashplate W/glass Autumn Gol		Appelez-nous	-
11	78082G		Splashplate W/glass Avocado		Appelez-nous	-
12	74094		Filler Strip			Immediately	$ 10.42
13	0095909		Glass Splash Plate		Appelez-nous	-
14	73022		Lower Trim		Appelez-nous	-
15	Y74096		Jacket Bottom		Appelez-nous	-
16	0094204		Door Guide		Appelez-nous	-
17	93069W		Jacket End, R.h. White		Appelez-nous	-
17	93069A		Jacket End, R.h. Antique Coppe		Appelez-nous	-
17	93069G		Jacket End, R.h. Avocado		Appelez-nous	-
17	93069H		Jacket End, R.h. Autumn Gold		Appelez-nous	-
18	93081W		Jacket End, L.h. White		Appelez-nous	-
18	93081A		Jacket End, L.h. Antique Coppe		Appelez-nous	-
18	93081G		Jacket End, L.h. Avocado		Appelez-nous	-
18	93081H		Jacket End, L.h. Autumn Gold		Appelez-nous	-
19	Y0094391		Sub 60714, Retainer, Insul.		Appelez-nous	-
20	Y78034		Strike, Oven Door		Appelez-nous	-
21	78001		Oven Rack		Appelez-nous	-
22	73060		Oven Vent			Immediately	$ 24.25
23	0093625		Cover Plate Front Frame		Appelez-nous	-
24	Y0094356		Hinge, Bottom		Appelez-nous	-
25	Y0094357		Hinge, Top		Appelez-nous	-
26	74091		Jacket Top		Appelez-nous	-
27	Y71142		Main Body		Appelez-nous	-
28	78701		Insulation Retainer, Jacket To		Appelez-nous	-
29	Y71542		Side Panel, R.h. - Gray		Appelez-nous	-
30	Y71541		Side Panel, L.h. - Gray		Appelez-nous	-
31	69849		Back Panel			Immediately	$ 25.14
