SELECT A DIAGRAM
01 - Control Panel Parts
02 - Lower Oven Cabinetassy

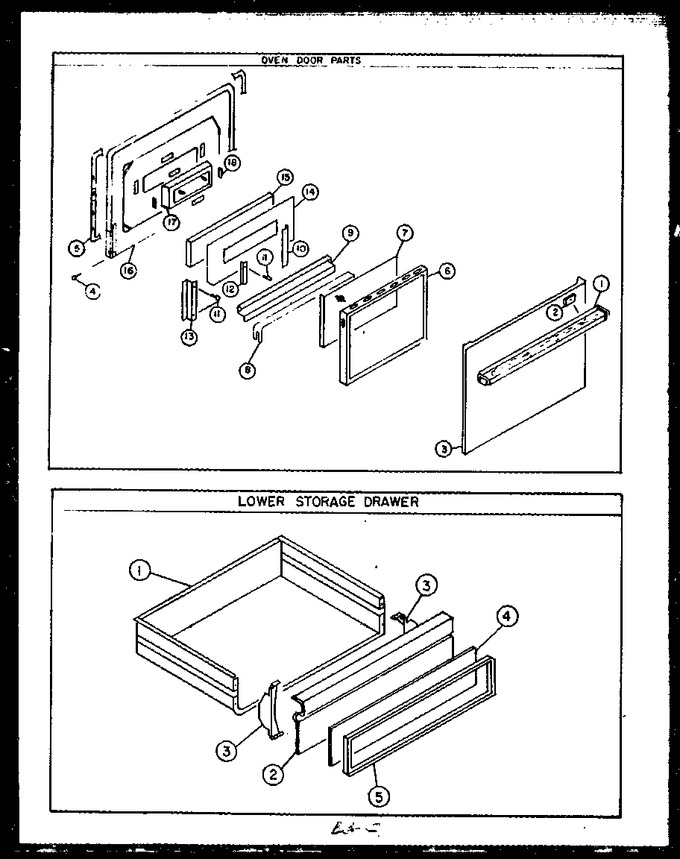

03 - Oven Door Parts
04 - Page 1
05 - Upper Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 70181 | Handle, Oven Door (Replaces: 68150) |
|
Immediately | $ 89.99 | ||||
| 2 | 79978 | Spacer |
|
- | |||||
| 4 | 0091632 | Rivet |
|
- | |||||
| 5 | 0091629 | Seal, Oven Door |
|
- | |||||
| 6 | Y63703 | Frame, Oven Door |
|
- | |||||
| 7 | Y63652 | Black Glass Panel |
|
- | |||||
| 8 | Y63195 | Glass, Trim |
|
- | |||||
| 9 | Y63193 | Air Baffle |
|
- | |||||
| 10 | 63658 | Support Bracket |
|
- | |||||
| 11 | Y63661 | Rubber Bumper |
|
- | |||||
| 12 | Y63196 | Support Bracket |
|
- | |||||
| 13 | 63658 | Support Bracket |
|
- | |||||
| 14 | Y63656 | Insulation Retainer |
|
- | |||||
| 15 | Y63662 | Insulation |
|
- | |||||
| 16 | Y63576 | Oven Door Backer, Note 3 |
|
- | |||||
| 17 | Y63186 | Window Assembly |
|
- | |||||
| 18 | Y0040992 | Sub 52629, Retainer, Glass |
|
- | |||||
| NOTE: | Ejd 346 And Ejd 395 Note 3 - On Models Ehd 344 And Ehd 346 Starting At Serial Number 5858724, The Door Backer Changed To Part Number 61176y. On Modelsejd 346 |
|
- |
