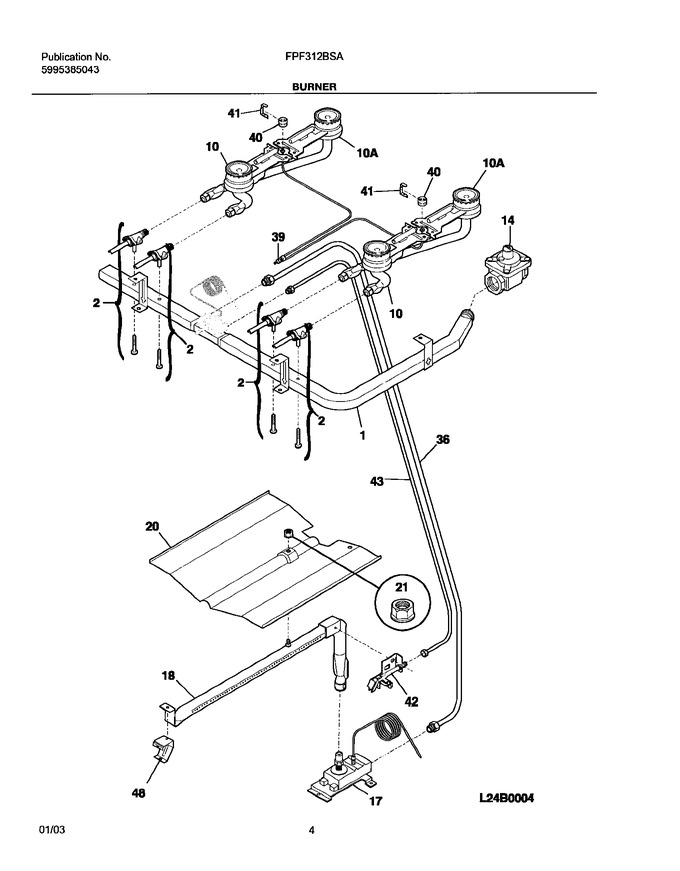

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
40	5303211191		Cap-top Pilot, (2)				$ 35.75
41	3202798		Shield-pilot, Stainless Steel, (2)				$ 55.18
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
F1	316134401		Manifold Pipe		Appelez-nous	-
F10	5304506427		Burner,top ,front ,venturi Ring   (Replaces: 316103800)				$ 101.63
F10A	5304506426		Burner,top ,rear ,venturi Ring   (Replaces: 316103801)				$ 100.05
F14	316113600		Regulator-pressure		Appelez-nous	-
F17	5303280593		Valve,safety				$ 405.51
F18	5303280585		Burner-oven		Appelez-nous	-
F2	5303935189		Valve,top Burner ,2 Position ,w/mtg Screw				$ 300.77
F36	316060800		Tubing,thermo/safety `3/8 ,alum		Appelez-nous	-
F39	5303211133		Tubing-top Pilot, Dual				$ 88.20
F42	5303280589		Pilot,oven				$ 107.89
F43	3203398		Tubing`thermo/pilot `3/16 ,alum		Appelez-nous	-
NI	316134300		Screw,10-24 ,valve Mounting		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
