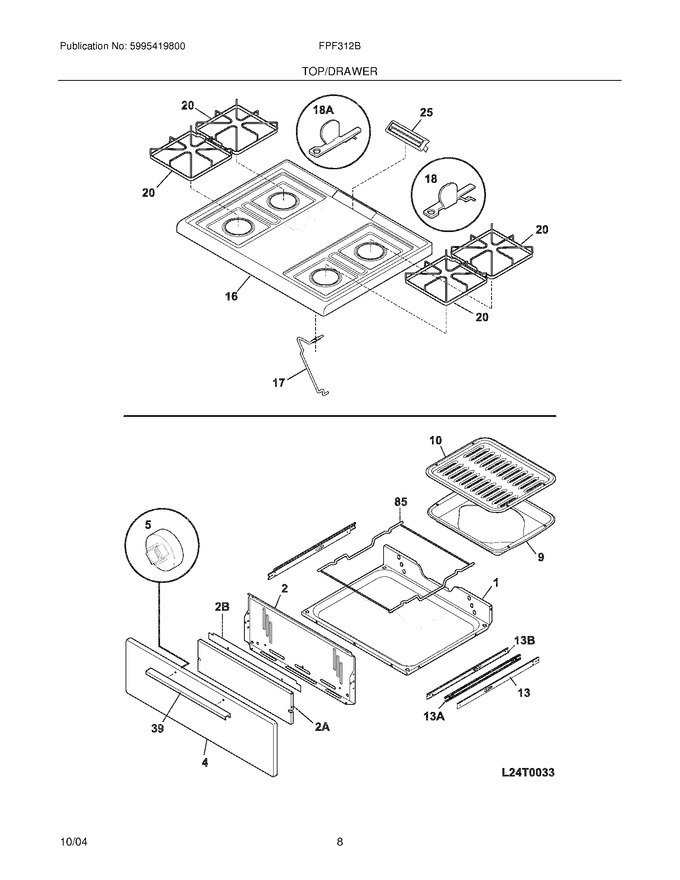

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage,low Broil				$ 232.57
2	316236401		Liner,low Broil				$ 119.96
4	316231211		Panel-drawer,white				$ 51.92
5	316129100		Fastener,push-in Nut ,nylon ,spacer		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316111502		Glide,low Broil ,chassis		Appelez-nous	-
16	316273001		Main Top,white				$ 414.87
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
25	316104500		Cover,vent ,chrome		Appelez-nous	-
39	316019511		Handle,drawer ,white				$ 109.36
85	316115600		Rack-low Broil				$ 105.47
13A	316111600		Glide-low Broil,inner		Appelez-nous	-
13B	316111501		Glide-low Broil,outer		Appelez-nous	-
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
2A	316110800		Shield,broiler		Appelez-nous	-
2B	316237600		Shield,low Broil ,top		Appelez-nous	-
F20	316277801		Grate,black ,(4)				$ 124.03
NI	316021120		Screw,shoulder Head ,8-18 X 5/8 ,(2) ,square Drive				$ 13.28
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
