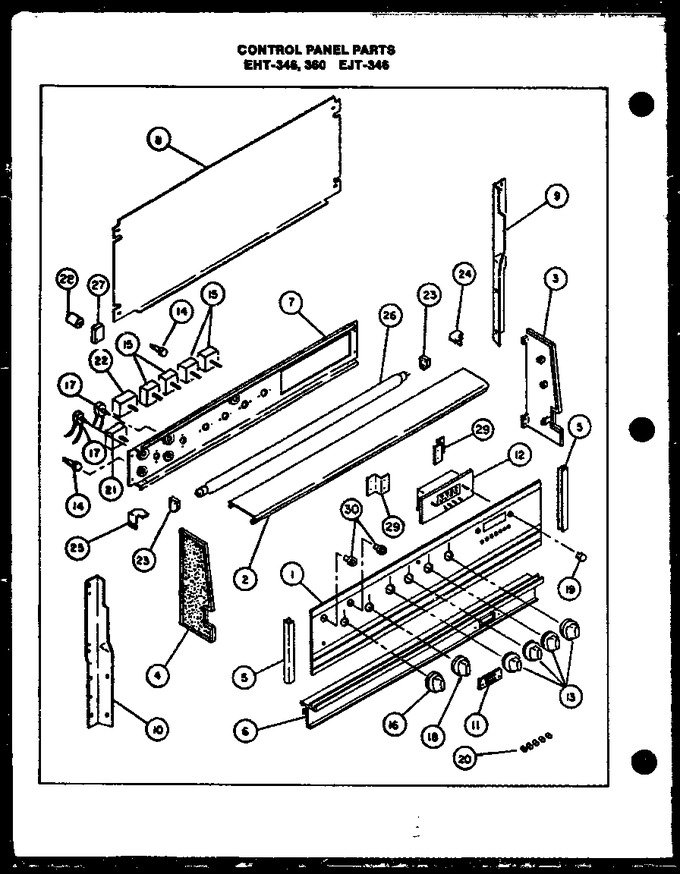

01 - Control Panel Parts
02 - Electrical Components
03 - Oven Cabinet Assy
04 - Page 1
05 - Storage Drawer Parts
06 - Top And Oven Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0300464 | Backguard Glass |
|
- | |||||
| 2 | 300470B | Top Trim, Backguard |
|
- | |||||
| 3 | 0300695 | End Cap-r.h. |
|
- | |||||
| 4 | 0300694 | End Cap-l.h. |
|
- | |||||
| 5 | 0063575 | Channel, Glass |
|
- | |||||
| 6 | 300775W | Trim, Lower - White |
|
- | |||||
| 6 | 300775L | Trim, Backguard-ego |
|
- | |||||
| 7 | Y0301520 | Control Panel, Backguard |
|
- | |||||
| 8 | 0058886 | Cover, Backguard |
|
- | |||||
| 9 | Y0058920 | Support, Backguard Rt |
|
- | |||||
| 10 | Y0058919 | Support Backguard Lh |
|
- | |||||
| 11 | 300726B | Trim, Vent, Black |
|
- | |||||
| 12 | 0301056 | Timer, Cook & Off |
|
- | |||||
| 13 | 0300708 | Knob, Top Element |
|
- | |||||
| 14 | Y0071820 | Indicator Light |
|
- | |||||
| 15 | 0071745 | Switch, Infinite |
|
- | |||||
| 16 | 0301000 | Knob, Thermostat |
|
- | |||||
| 17 | 0300778 | Kit, Light Switch |
|
- | |||||
| 18 | 0302040 | Knob, Selector |
|
- | |||||
| 19 | 0300702 | Knob, Clock |
|
- | |||||
| 20 | 0300703 | Sub 302045, Set Button Knob |
|
- | |||||
| 21 | Y0063415 | Thermostat |
|
- | |||||
| 22 | Y0300900 | Switch, Selector |
|
- | |||||
| 23 | Y0071924 | Light Socket |
|
- | |||||
| 24 | 0061242 | Bracket, Lamp Socket, R.h. |
|
- | |||||
| 25 | 0061241 | Bracket, Lamp Socket, L.h. |
|
- | |||||
| 26 | WPY0067945 | Lamp, Flourescent (Replaces: Y0067945) |
|
$ 29.33 | |||||
| 27 | 0071964 | Socket, Starter |
|
- | |||||
| 28 | 0071920 | Starter, Flourescent |
|
- | |||||
| 29 | 0301753 | Bracket, Clock Mtg. |
|
- | |||||
| 30 | 0065051 | Bezel, Panel Switch |
|
- | |||||
| NI | Y0065052 | Speednut |
|
- |
