SELECT A DIAGRAM

02 - Door Parts


03 - Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Shelves And Supports


08 - Shelves And Supports


09 - System And Automatic Defrost Parts


10 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	5303206606		Cover-crisper Pan		Appelez-nous	-
26	5303286894		Pan-crisper, Lh		Appelez-nous	-
26	5303286895		Pan-crisper, Rh		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		Cap-protector				$ 4.57
31	5303286899		Pan-meat, Warm Gray		Appelez-nous	-
32	5303279439		Trim-meat Pan		Appelez-nous	-
33	5303200329		Gasket-crisper Cvr, 13.25``		Appelez-nous	-
34	5303288235		Container-ice		Appelez-nous	-
35	5303275758		Trim-crisper Pan, Lh		Appelez-nous	-
35	5303282659		Trim-crisper Pan, Rh		Appelez-nous	-
36	215069001		Frame-half Shelf, Meat Kpr Shelf, (4)		Appelez-nous	-
37	5303275678		Trim-half Shelf, Meat Kpr Shelf, Front		Appelez-nous	-
42	5303209272		Hanger, Meat Pan/tray, Lh				$ 90.83
43	5303211967		Shelf-glass, Half Shelf, Meat Kpr Shelf		Appelez-nous	-
44	5303211828		Meat Kpr Shelf Trim		Appelez-nous	-
*67387	5303211351		Lock, Rear Trim		Appelez-nous	-
25A	5303280075		Trim, Crisper Cover (non-illustrated)		Appelez-nous	-
37A	5303209263		Retainer-glass (non-illustrated)		Appelez-nous	-
42A	5303209273		Hanger, Meat Pan/tray, Rh (non-illustrated)				$ 60.06

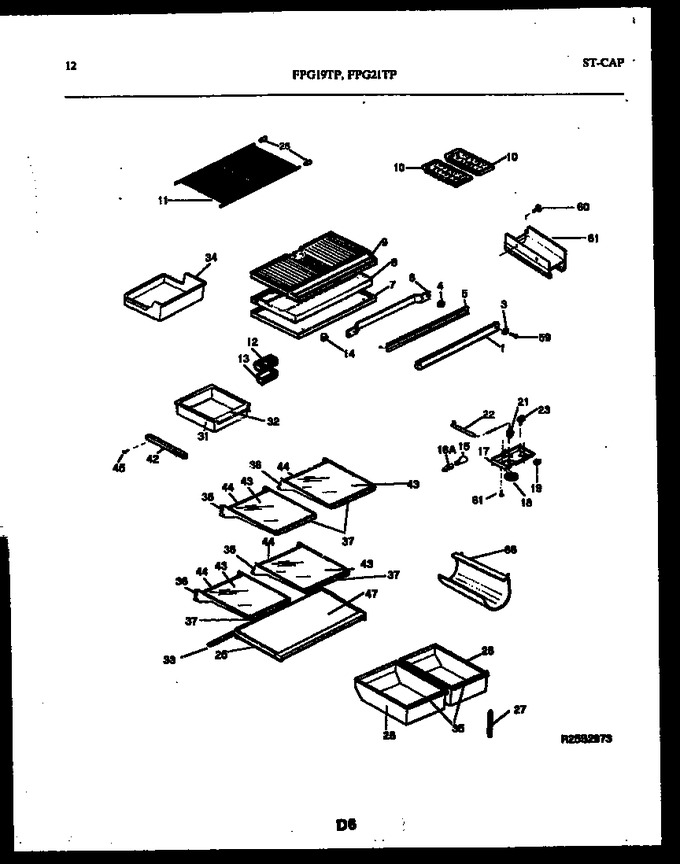

    View Diagram in Separate Window       Print Part List
