Diagram # Part Number Description Series Availability Ships Price Add to Cart
150 B5761701 Bracket-timer Appelez-nous -
151 B5761901 Switch-limit A Appelez-nous -
152 M0227520 Screw Appelez-nous -
153 M0230015 Screw Appelez-nous -
154 B5699802 Timer Appelez-nous -
156 B5718802 Switch, Defrost Appelez-nous -
157 M0216617 Screw Appelez-nous -
158 A3245202 Spring-compression Appelez-nous -
159 B5732202 Sleeve, Defrost Appelez-nous -
160 B5732102 Bracket Appelez-nous -
161 WP90767 Screw   (Replaces: M0216529) In-Stock Immediately $ 7.04

162 M0282005 Nut K Special Order $ 7.07

163 A3197701 Washer-u Type Appelez-nous -
164 M0320901 Terminal Appelez-nous -
165 M0270524 Washer Appelez-nous -
166 M0202520 Screw Appelez-nous -
167 M0230015 Screw Appelez-nous -
168 B5762103 Switch-defrost Appelez-nous -
169 B5774001 Bracket-switch Appelez-nous -
170 B5773901 Sleeve Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

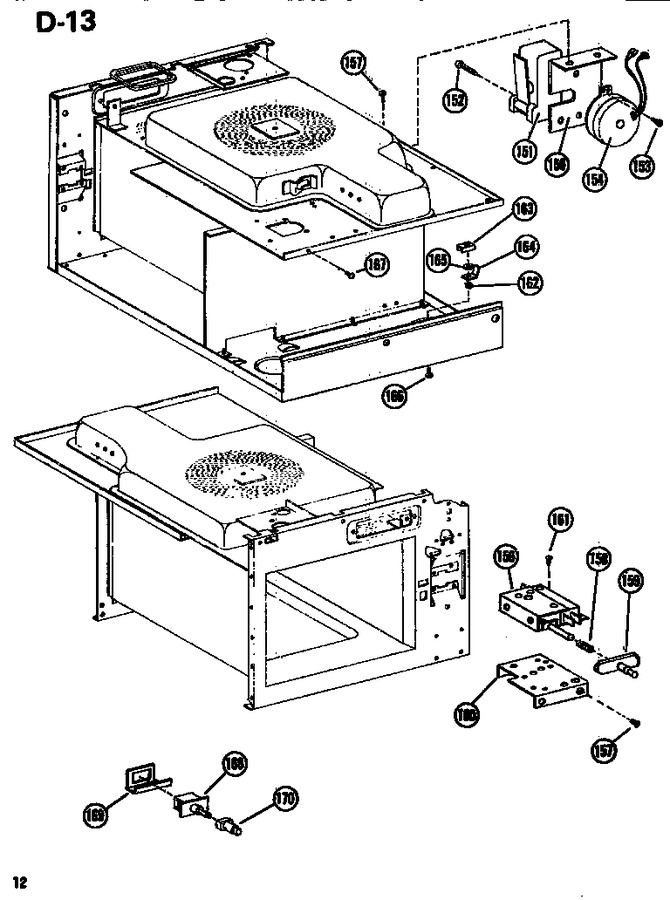

Diagram for EMR3 (BOM: P7231803M)
