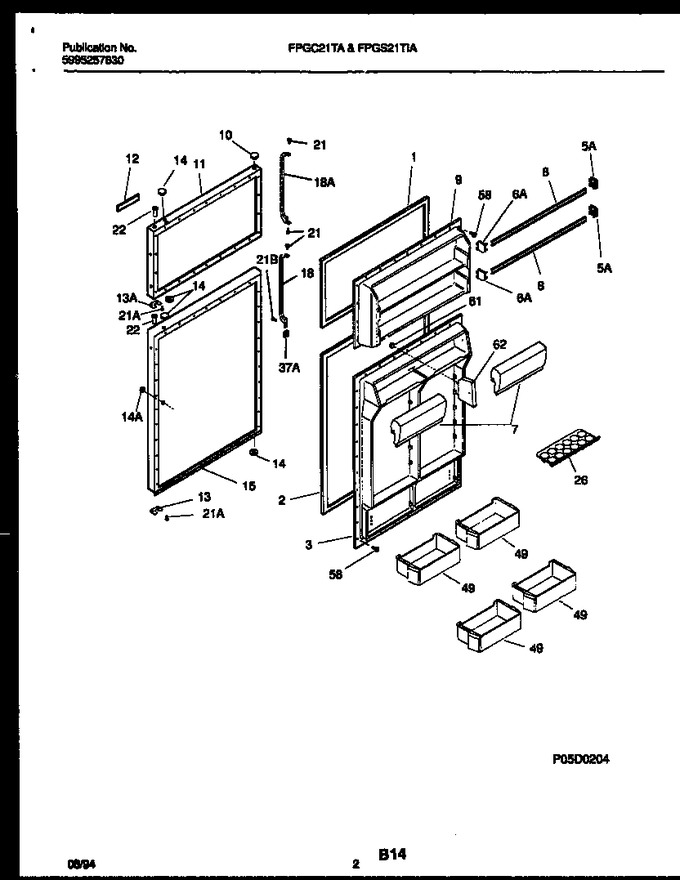

FPGC21TAW2 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	215608913	Gasket-frzr Door, White, Magnetic	Appelez-nous	-
2	215732413	Gasket-refr Door, White, Magnetic	Appelez-nous	-
3	5303275674	Panel-inner Door, Refr	Appelez-nous	-
7	5303284478	Door-dairy			$ 179.92
8	215474021	Rack-door	Appelez-nous	-
9	5303206631	Panel-inner Door, Frzr	Appelez-nous	-
10	5308000134	Plug-button, White, Hinge Brg Hole			$ 5.62
11	5303917386	Panel-frzr Door, White, W/insulation	Appelez-nous	-
12	215008601	Nameplate Assy, White	Appelez-nous	-
13	5303212491	Door Stop, Refr Section	Appelez-nous	-
14	530800090	Plug-button, White, Handle/dr Stop	Appelez-nous	-
15	5303917384	Panel-refr Door, White, W/insul & Brace	Appelez-nous	-
18	215482116	Handle-door, 19.86``, White	Appelez-nous	-
21	5303272566	Screw-handle Mtg, Oval Head, 10-24(d) X 5/8, White, Cro	Appelez-nous	-
22	3206153	Bearing-hinge	Appelez-nous	-
26	215817806	Tray-egg			$ 13.46
49	215441502	Bin-door, Gallon			$ 176.87
58	5308002748	Screw	Appelez-nous	-
61	5308017047	Nut, Self-threading, 1/8	Appelez-nous	-
62	5303275673	Divider-dairy Compt	Appelez-nous	-
*10887	5303917276	Insulation-door, Fiberglass, (bulk)			$ 330.91
13A	5308000255	Door Stop			$ 42.20
14A	240494001	Plug-button,white ,refr Door Front , (Replaces: 215352201)		Immediately	$ 18.20
15A	215894100	Cross Brace-door (non-illustrated)	Appelez-nous	-
18A	215482114	Handle-door, 19.51``, White	Appelez-nous	-
21A	5308011745	Screw			$ 10.38
21B	215733200	Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2	Appelez-nous	-
37A	215480205	Trim-handle, End Cap, White, Refr Door	Appelez-nous	-
5A	5303323480	Support-door Rack, Rh (Replaces: 5303017377)			$ 14.18
6A	5303323481	Support-door Rack, Lh (Replaces: 5303017380)		Immediately	$ 14.18
