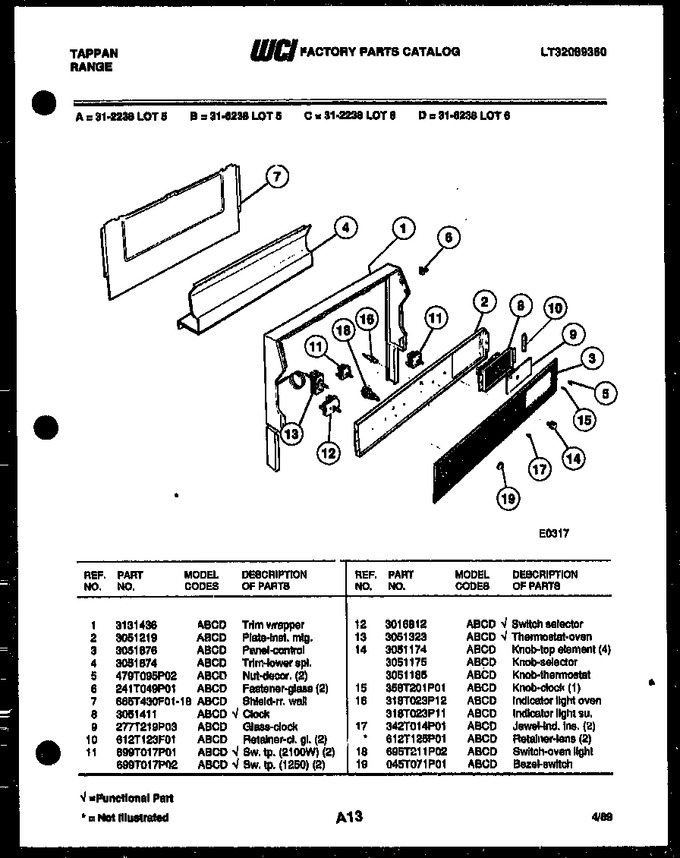

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131436		Trim Wrapper		Appelez-nous	-
2	3051219		Plate-inst Mtg		Appelez-nous	-
3	3051876		Panel-control		Appelez-nous	-
4	3051874		Trim-lower Spl		Appelez-nous	-
5	479T095P02		Nut-decor (2)		Appelez-nous	-
6	241T049P01		Fastener-glass (2)		Appelez-nous	-
7	665T430F01-18		Shield-rr. Wall		Appelez-nous	-
8	3051411		Clock		Appelez-nous	-
9	277T219P03		Glass-clock		Appelez-nous	-
10	612T123F01		Retainer-cl Gl (2)		Appelez-nous	-
11	699T017P01		Sw Tp (2100w) (2)		Appelez-nous	-
12	3016812		Switch-selector		Appelez-nous	-
13	3051323		Thermostat-oven		Appelez-nous	-
14	3051174		Knob-top Element (4)		Appelez-nous	-
15	358T201P01		Knob-clock (1)		Appelez-nous	-
16	318T023P12		Indicator Light, Oven		Appelez-nous	-
17	342T014P01		Jewel-ind Ins (2)		Appelez-nous	-
18	695T211P02		Switch - Oven Light		Appelez-nous	-
19	045T071P01		Bezel, Switch		Appelez-nous	-
11A	699T017P02		Sw. Tp. (1250) (2)		Appelez-nous	-
14A	3051175		Knob-selector		Appelez-nous	-
14B	3051185		Knob-thermostat		Appelez-nous	-
16A	318T023P11		Indicator-light Su		Appelez-nous	-
17A	612T125P01		Retainer-lens (2) (non-illustrated)		Appelez-nous	-
