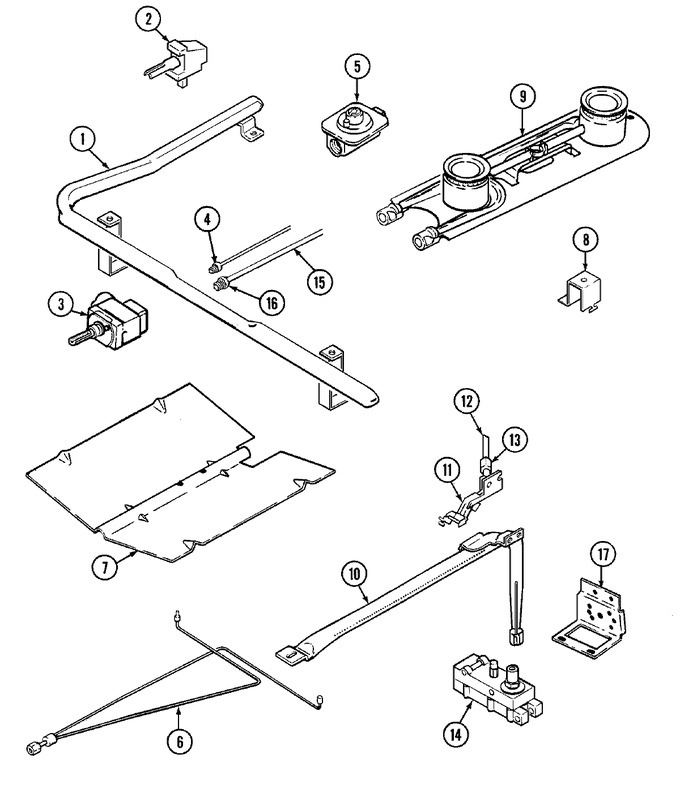

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7513P132-60 | Pipe Manifold | 01 |
|
- | ||||
| 2 | 7502P174-60 | Valve, Top Burner | 01 |
|
- | ||||
| 2 | 7101P044-60 | Screw, Valve | 01 |
|
- | ||||
| 3 | 7101P010-60 | Screw, Control | 01 |
|
- | ||||
| 3 | 7515P032-60 | Thermostat | 01 |
|
- | ||||
| 4 | 1555222 | Nut, Loxit (3/16``) | 01 |
|
- | ||||
| 5 | 7510P002-60 | Regulator, Pressure | 01 |
|
- | ||||
| 6 | 7103P070-60 | Nut, Top Pilot | 01 |
|
- | ||||
| 6 | 7505P193-60 | Burner, Pilot (natural) | 01 |
|
- | ||||
| 7 | 3601F229-45 | Baffle, Oven Bottom | 01 |
|
- | ||||
| 7 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 8 | 3807F204-34 | Support, Top Pilot | 01 |
|
- | ||||
| 8 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 9 | 3412A004-19 | Burner, Top | 01 |
|
- | ||||
| 10 | 3403D023-45 | Burner, Oven | 01 |
|
- | ||||
| 11 | WP4159193 | Screw (Replaces: 7101P112-60) | 01 |
|
$ 4.29 | ||||
| 11 | 7432P068-60 | Lighter Pilot | 01 |
|
- | ||||
| 12 | 3414F108-44 | Tubing 3/16`` Sub | 01 |
|
- | ||||
| 13 | 1555261K | Nut & Ferrule (3/16``) | 01 |
|
- | ||||
| 14 | WP7101P062-60 | Screw No.10 X 2 (Replaces: 7101P062-60) | 01 |
|
$ 7.24 | ||||
| 14 | 7501P111-60 | Valve, Oven | 01 |
|
- | ||||
| 15 | 3414F094-44 | Tubing 3/8`` | 01 |
|
- | ||||
| 16 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- | ||||
| 17 | 3801F238-45 | Bracket, Safety Valve | 01 |
|
- |
