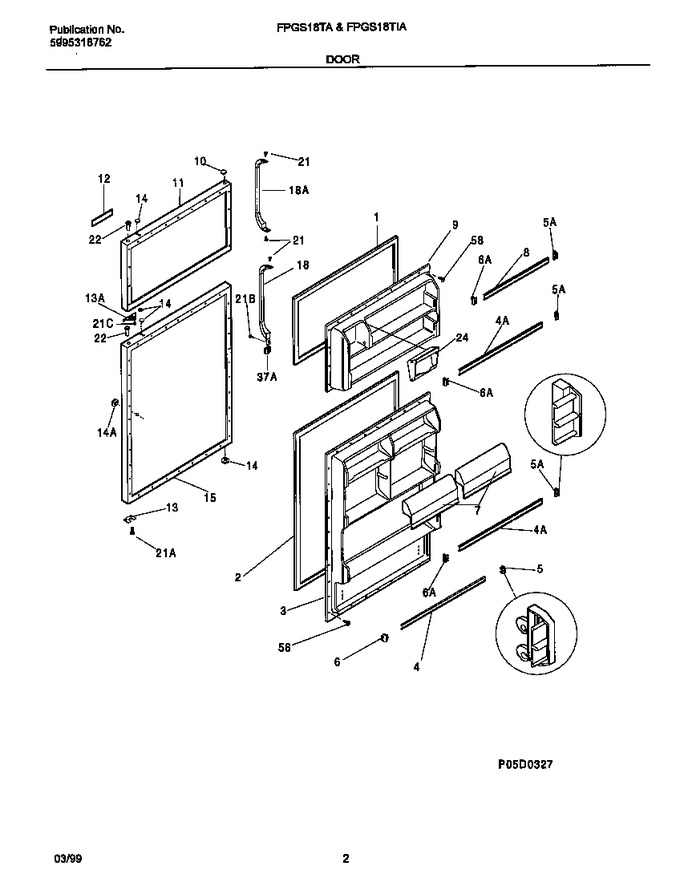

1	215608912		Gasket-frzr Door,white,magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	215132101		Panel-inner Door, Refr		Appelez-nous	-
4	5303291325		Rack-door, 25.53`` X 1.62``		Appelez-nous	-
4	215139809		Rack-door, 24.38`` X 1.58``		Appelez-nous	-
5	5317828701		Support-door Rack, Rh				$ 8.18
5	3206161		Support-door Rack,extends 1.06`` ,rh ,w/mtg Hooks		Appelez-nous	-
6	5317828401		Support-door Rack, Lh				$ 11.48
6	3206162		Support-door Rack,extends 1.06`` ,lh ,w/mtg Hooks		Appelez-nous	-
7	5303288979		Door-dairy		Appelez-nous	-
8	215139810		Rack-door, 18.25`` X 1.58``		Appelez-nous	-
9	3202033		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917344		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215008601		Label-nameplate, White		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White   (Replaces: 5308000090)			Immediately	$ 18.20
14	240494001		Plug-button, White, Handle Mtg, Refr Door Front   (Replaces: 215352201)			Immediately	$ 18.20
15	5303917411		Panel-refr Door, White, W/insulation, & Cross Brace		Appelez-nous	-
18	215482137		Handle-door, 17.37``, White		Appelez-nous	-
18	215482135		Handle-door, 17.02``, White		Appelez-nous	-
21	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
21	5303272566		Screw-handle Mtg,oval Head ,10-24d X 5/8,white ,cross Re		Appelez-nous	-
21	5308011745		Screw				$ 10.38
21	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
22	3206153		Bearing-hinge		Appelez-nous	-
24	3203047		Dispenser-juice Can,white		Appelez-nous	-
37	215480205		Trim-handle, End Cap, White, Refr Door		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*56920	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
