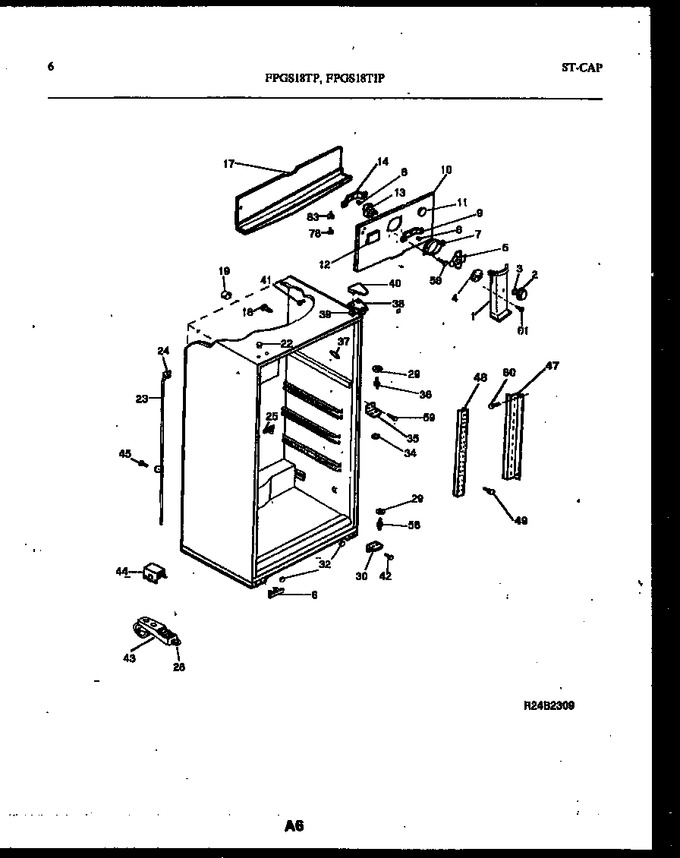

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 38 | 3206100 | Bracket-upper Hinge |
|
- | |||||
| 39 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 40 | 3206105 | Cover-upper Hinge, Almond |
|
$ 60.90 | |||||
| 41 | 5304509705 | Grommet, Shelf Mtg (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 42 | 3206143 | Screw-lwr Hinge Mtg, Hex Washer Hd, 1/4-20 X 5/8, (4) |
|
- | |||||
| 43 | 5300188673 | Roller Assy-front (2) |
|
- | |||||
| 44 | 5303283014 | Roller Assy-rear, Metal Hsg, (2) |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 47 | 3206202 | Channel-shelf Mtg, Side, (2) |
|
- | |||||
| 48 | 3916030 | Channel-shelf Mtg, Center |
|
- | |||||
| 49 | 5308016568 | Screw-chan/air Duct, Cr Pan Head, 8(a) X 1-1/2 |
|
- | |||||
| 56 | 5303001321 | Pin-lower Hinge |
|
$ 17.25 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 60 | 5308010253 | Screw |
|
- | |||||
| 78 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 83 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| *61218 | 5308016571 | Plug-button, Liner |
|
$ 4.79 | |||||
| 38A | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 38B | 5308012296 | Tapping Plate, Upper Hinge, (2) (non-illustrated) |
|
$ 47.44 | |||||
| 41A | 5304500407 | Grommet, Shelf Mtg, Lh (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 43A | 5308009760 | Roller, (2) (non-illustrated) |
|
- | |||||
| 43B | 5308009790 | Spring-roller Adj, (2) (non-illustrated) |
|
$ 4.30 | |||||
| 43C | 3051070 | Screw-rlr/plate Mtg, Spcl Hx Wshr Hd, 10-32 X 1/2 (non-illustrated) |
|
- |
