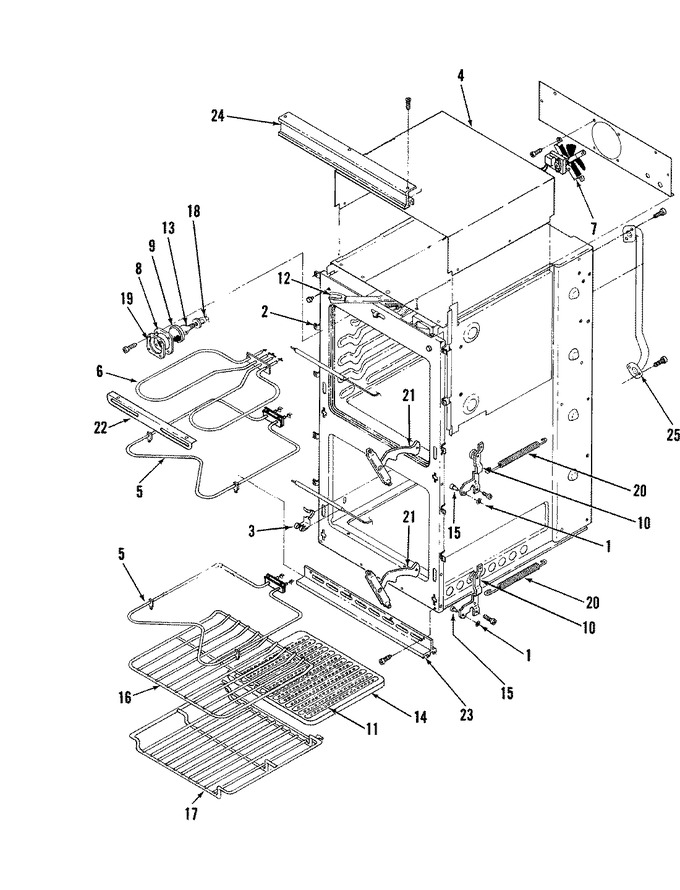

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7112P019-60 | Clip, Hinge Pin |
|
- | |||||
| 1 | 4003J011 | Base, Assembly |
|
- | |||||
| 1 | 7401P003-60 | Block, Terminal----na |
|
- | |||||
| 2 | 7112P020-60 | Clip, Oven Front |
|
- | |||||
| 3 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) |
|
Immediately | $ 11.07 | ||||
| 4 | 4005F148 | Cover, Box |
|
- | |||||
| 4 | 4005F150 | Cover, Wire |
|
- | |||||
| 5 | WPY04000066 | Element Bake (Replaces: 7406P013-60) |
|
Immediately | $ 70.53 | ||||
| 6 | WPY04000048 | Element, Broil (Replaces: 1938369) |
|
$ 160.58 | |||||
| 7 | 7427P004-60 | Fan, Assembly |
|
- | |||||
| 7 | 7201P003-60 | Gasket, Element |
|
- | |||||
| 8 | 7201P016-60 | Gasket |
|
- | |||||
| 8 | 7201P015-60 | Gasket, Lamp Retainer |
|
- | |||||
| 8 | 7201P014-60 | Gasket, Housing |
|
- | |||||
| 9 | 7902P057-60 | Glass, Lamp Guard |
|
- | |||||
| 10 | 3418F026-34 | Hinge, Oven Door (lt) |
|
- | |||||
| 10 | 3418F025-34 | Hinge, Oven Door (rt) |
|
- | |||||
| 11 | 4396923 | Insert, Broiler Pan (Replaces: 3413F006-13) |
|
Immediately | $ 52.04 | ||||
| 12 | 8009E005 | Lever, Door Lock |
|
- | |||||
| 13 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) |
|
Immediately | $ 1.98 | ||||
| 13 | 7103E051 | Nut, Snap (without L) |
|
- | |||||
| 14 | 4396923 | Pan, Broiler (Replaces: 3401F008-13) |
|
Immediately | $ 52.04 | ||||
| 15 | 7113P002-60 | Pin, Hinge |
|
$ 9.05 | |||||
| 16 | 7801P005-60 | Rack |
|
- | |||||
| 17 | 7801P007-60 | Rack, Offset |
|
- | |||||
| 18 | 7413P001-60 | Resistor |
|
- | |||||
| 19 | 0749216 | Retainer |
|
- | |||||
| 20 | 7803P011-60 | Spring, Oven Dr. |
|
- | |||||
| 21 | 3420A036-34 | Stop Assy., Hinge |
|
- | |||||
| 22 | 1860210 | Terminal |
|
- | |||||
| 22 | 0862451 | Support |
|
- | |||||
| 22 | Y0862419 | Support, Broil Element |
|
- | |||||
| 24 | 7706P141-60 | Trim, Vent |
|
- |
