Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8007P002-60 Bushing Appelez-nous -
1 8003P002-60 Bumper Door (round) Appelez-nous -
2 7201P004-60 Gasket Appelez-nous -
3 7201P020-60 Gasket Appelez-nous -
4 7902P106-60 Dr Glass Black Appelez-nous -
5 0749228 Retainer Appelez-nous -
6 7701P024-60 Handle, Door (blk) Special Order $ 67.19

7 7711P038-60 Handle, Shield Appelez-nous -
8 2402W083-12 Lining Assy, Wd Ov Dr Appelez-nous -
9 1555248 Nut Self Locking Appelez-nous -
10 8257P060-60 Pad, Door Appelez-nous -
11 2401F045-70 Panel, Oven Door Appelez-nous -
12 Y0749236 Retainer, Gasket Appelez-nous -
13 Y0749231 Retainer, Ins.-top Appelez-nous -
14 WP4159193 Screw, Door Frame   (Replaces: 1986351) Special Order $ 4.29

14 7101E085 Screw Appelez-nous -
15 0787426 Shield, Oven Door Appelez-nous -
16 8010P015-60 Spacer, Handle (blk) Appelez-nous -
17 7803P011-60 Spring, Oven Dr. Appelez-nous -
17 74003986 Spacer, Glass   (Replaces: 8010P016-60) Special Order $ 13.08

18 7803P020-60 Spring, Ovn Door Appelez-nous -
19 0112243 Stop, Latch Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

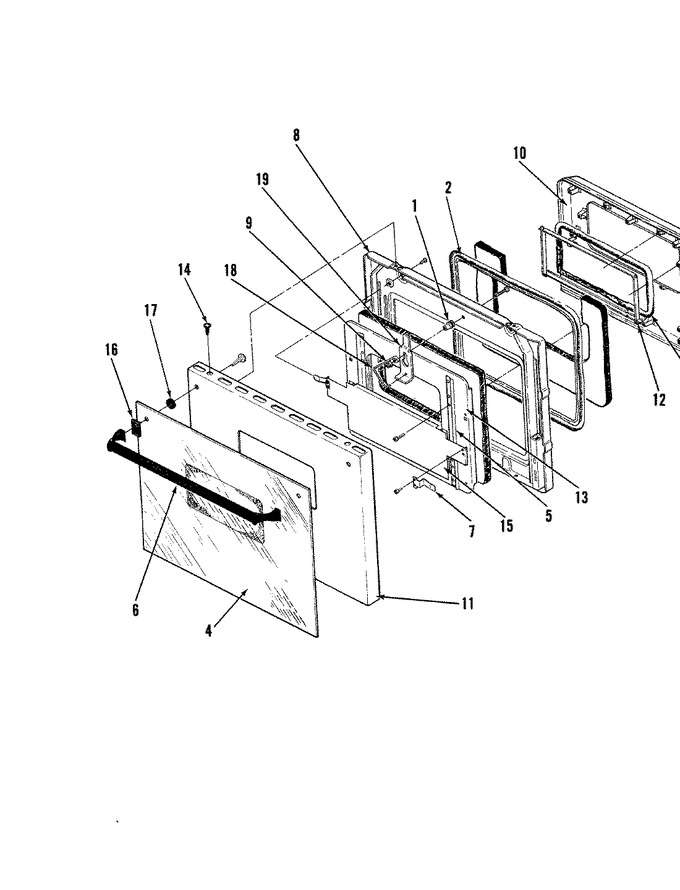

Diagram for EPE7-31819AE
