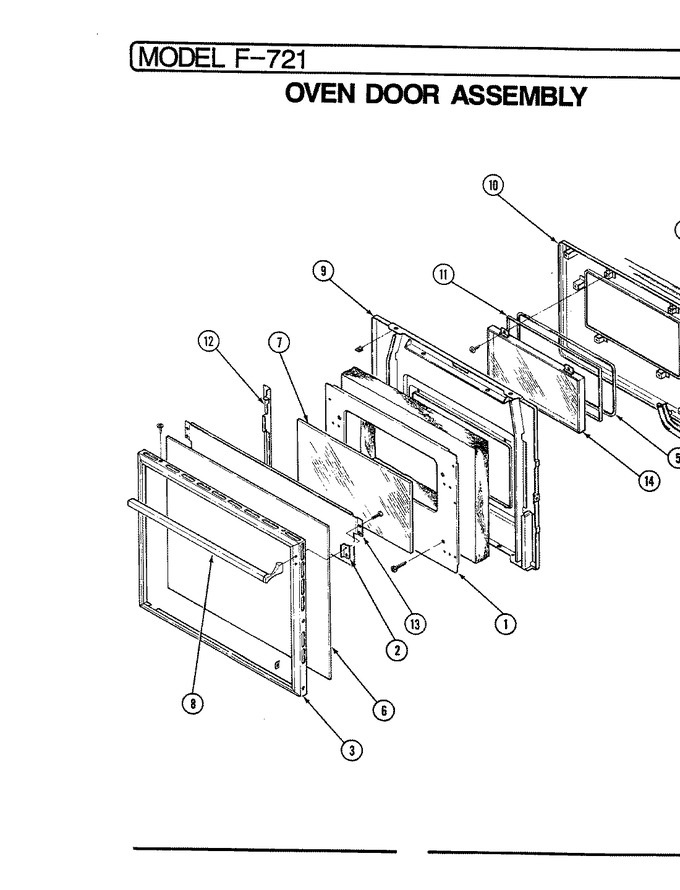

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601W131-51		Baffle, Door Assembly	1	Appelez-nous	-
2	7112P017-60		Clip, Door Handle	1	Appelez-nous	-
3	7706P221-60		Frame, Door Upper	1	Appelez-nous	-
4	7201P004-60		Gasket	1	Appelez-nous	-
5	7201P020-60		Gasket	1	Appelez-nous	-
6	7902P265-60		Glass, Door Screened	1	Appelez-nous	-
7	7902P035-60		Glass, Door Inner	1	Appelez-nous	-
8	7701P017-60		Handle, Door	1	Appelez-nous	-
9	2402W096-12		Lining Assy, Inner Dr	1	Appelez-nous	-
9	2402W130-15		Lining Assembly	2	Appelez-nous	-
10	2410W034-15		Pad, Door	1-3	Appelez-nous	-
10	2410W038-15		Pad, Oven Door	4	Appelez-nous	-
11	3804F021-45		Retainer, Gasket	1	Appelez-nous	-
12	3804F051-80		Retainer, Glass	1	Appelez-nous	-
13	3804F017-51		Retainer, Glass	1	Appelez-nous	-
14	5700A082-60		Window Assy.	1			$ 164.77
