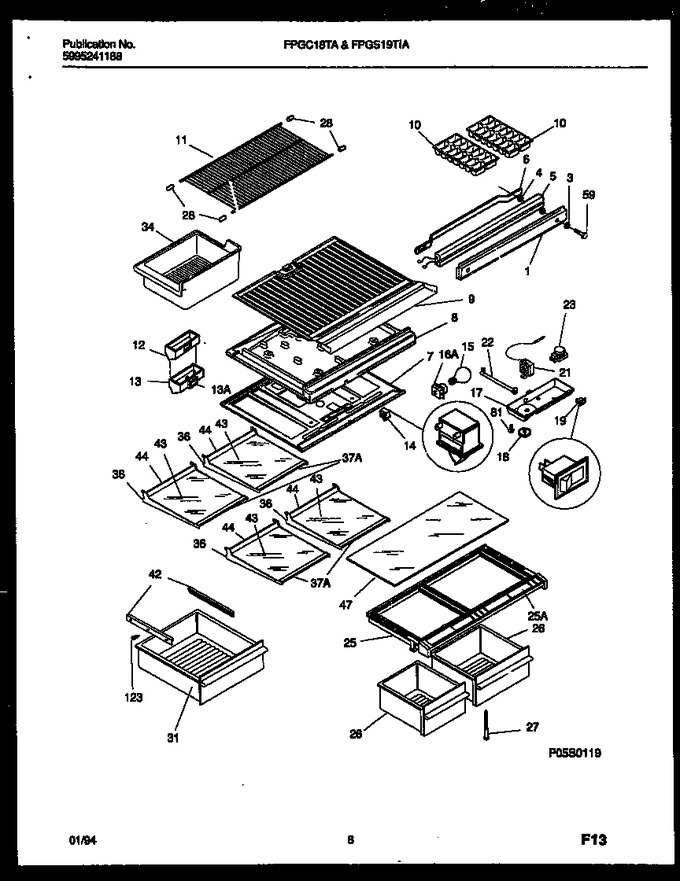

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200370 | Mullion, Almond |
|
- | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 5303200464 | Spacer-mullion Mtg, Steel |
|
- | |||||
| 5 | 5303210351 | Heater-mullion |
|
- | |||||
| 6 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 7 | 3018993 | Top Panel-refr |
|
- | |||||
| 8 | 3018994 | Divider - Styrofoam |
|
- | |||||
| 9 | 5303211427 | Bottom Panel-frzr |
|
- | |||||
| 11 | 5303283031 | Shelf, Freezer, Straight |
|
$ 120.59 | |||||
| 12 | 5308014667 | Deflector-air, W/seal |
|
- | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 5303296359 | Box-control |
|
- | |||||
| 18 | 5303296361 | Knob-temp Control |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver |
|
$ 27.08 | |||||
| 21 | 5303018894 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 25 | 5303206606 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303295929 | Pan-crisper, Lh, 11.34`` Wide |
|
- | |||||
| 26 | 5303295931 | Pan-crisper, Rh, 14.34`` Wide |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 31 | 5303295941 | Pan-meat |
|
- | |||||
| 34 | 5303289069 | Container-ice |
|
- | |||||
| 36 | 215069005 | Frame-half Shelf, Cantilever |
|
- | |||||
| 42 | 5303276782 | Hanger-pan/tray, Lh |
|
$ 107.84 | |||||
| 42 | 5303276781 | Hanger-pan/tray, Rh |
|
$ 59.17 | |||||
| 43 | 5303299899 | Glass-shelf, Half Shelf |
|
- | |||||
| 44 | 5303284471 | Trim-half Shelf, Snap-on, Rear |
|
- | |||||
| 47 | 5303295949 | Insert-pan Cover, Glass |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 123 | 08014528 | Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P |
|
$ 4.31 | |||||
| 12A | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 13A | 5303200590 | Extension, Air Deflector, With Insulation |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17A | 5308016567 | Nut-anchor (non-illustrated) |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 25A | 5303280075 | Trim-crisper Cover |
|
- | |||||
| 36A | 215339900 | Clip-cantilevr Shlf (non-illustrated) |
|
$ 5.83 | |||||
| 37A | 5303293823 | Trim-half Shelf, Front |
|
- | |||||
| 37B | 5303209263 | Retainer-glass (non-illustrated) |
|
- | |||||
| 44A | 5303211351 | Lock-shelf Trim, Rear (non-illustrated) |
|
- | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 8A | 3018900 | Harness-wiring, Control/divider (non-illustrated) |
|
- | |||||
| 8B | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 |
