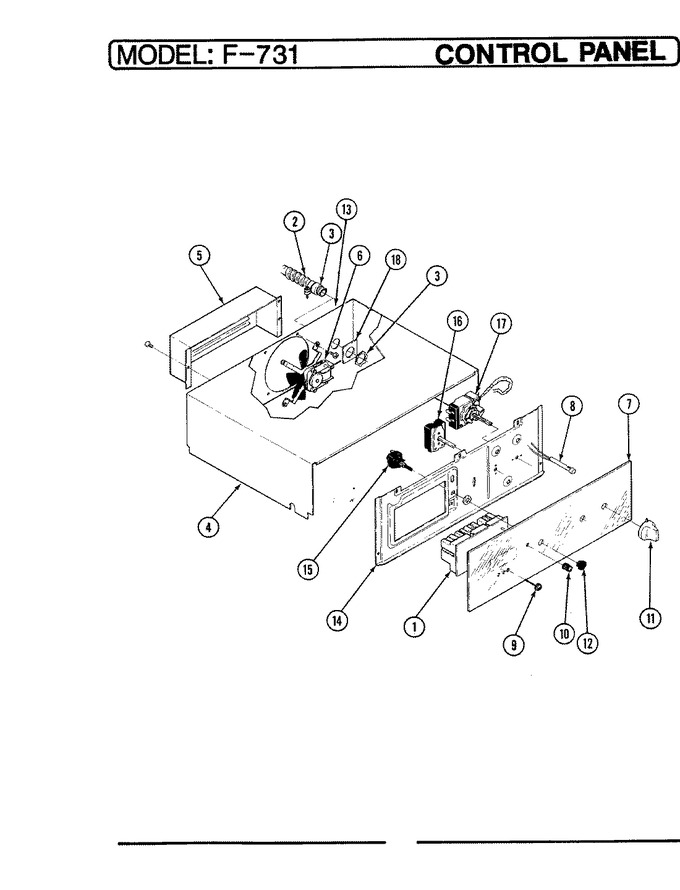

02 - Control Panel
03 - Door Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8312P017-60 | Shaft, Clock | 1 |
|
- | ||||
| 1 | 7601P047-60 | + Clock | 1 |
|
- | ||||
| 2 | 7434P006-60 | Conduit, Flexible | 1 |
|
- | ||||
| 3 | 7417P003-60 | Connector, Cable | 1-7 |
|
- | ||||
| 3 | 7417P017-60 | Connector, Cable | 8 |
|
$ 9.81 | ||||
| 4 | 4005F150-51 | Cover, Wire | 1 |
|
- | ||||
| 5 | 4005F177-51 | Cover, Fan | 1 |
|
- | ||||
| 6 | 7427P006-60 | Fan Assembly | 1 |
|
- | ||||
| 7 | 7912P018-60 | Glass, Control Panel | 1 |
|
- | ||||
| 8 | 7407P007-60 | Light, Indicator----na | 1 |
|
- | ||||
| 9 | 7711P171-60 | Knob, Clock (button-blk) | 1 |
|
$ 19.90 | ||||
| 10 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 11 | 7711P291-60 | Knob (chr) | 1 |
|
- | ||||
| 12 | 7214P007-60 | Sleeve, Switch (blk) | 1 |
|
- | ||||
| 13 | 3605F164-51 | Plate, Conduit | 8 |
|
- | ||||
| 13 | 3605F100-51 | Plate, Conduit | 1-7 |
|
- | ||||
| 14 | 3605F113-80 | Plate, Backing | 1 |
|
- | ||||
| 15 | 7403P109-60 | Switch, Push (blk) | 1 |
|
- | ||||
| 16 | 7403P023-60 | Switch, Selector | 1 |
|
- | ||||
| 17 | 7404P039-60 | Thermostat, Upper | 1 |
|
- | ||||
| 18 | 3605F131-51 | Plate, Reinforcement | 1 |
|
- |
