SELECT A DIAGRAM

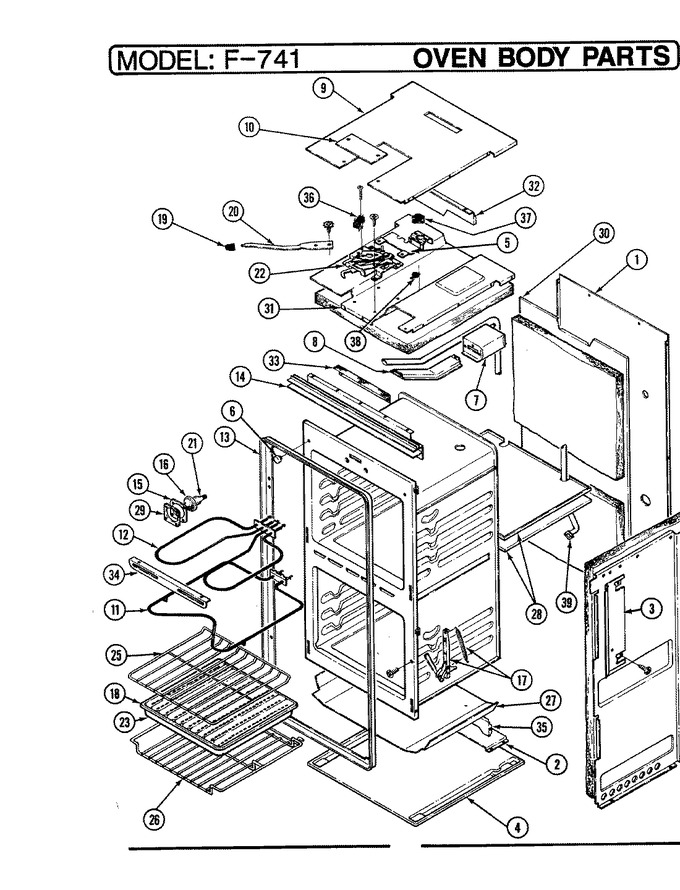

01 - Body
02 - Control Panel
03 - Door Assy. (lower)
04 - Door Assy. (upper)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F079-51 | Back Main | 1 |
|
- | ||||
| 2 | 3601F005-80 | Baffle, Base | 1 |
|
- | ||||
| 3 | 3601F130-51 | Baffle, Side | 1 |
|
- | ||||
| 4 | 4003F011-20 | Base, Wall Oven | 1 |
|
- | ||||
| 4 | 7401P003-60 | Block, Terminal----na | 1 |
|
- | ||||
| 5 | 3801F128-45 | Bracket, Hi Limit | 1 |
|
- | ||||
| 6 | 8003P009-60 | Bumper, Door (square) | 9 |
|
- | ||||
| 6 | 8003P002-60 | Bumper Door (round) | 1-8 |
|
- | ||||
| 7 | 4006W046-15 | Box, Vent | 1 |
|
- | ||||
| 8 | 3818W002-15 | Channel, Vent Assembly | 1 |
|
- | ||||
| 9 | 4005F202-51 | Cover, Box | 1 |
|
- | ||||
| 10 | 4005F160-45 | Cover, Lock | 1 |
|
- | ||||
| 11 | WPY04000066 | Element Bake (Replaces: 7406P013-60) | 1 |
|
Immediately | $ 70.53 | |||
| 12 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 13 | 7750P026-60 | Extrusion, Front Frame | 5 |
|
- | ||||
| 13 | 7706P157-60 | Extrusion, Frt Frame | 1-4 |
|
- | ||||
| 14 | 7706P141-60 | Trim, Vent | 1-4 |
|
- | ||||
| 14 | 7756P022-60 | Extrusion, Vent (blk) | 5 |
|
- | ||||
| 15 | 7201P014-60 | Gasket, Housing | 1 |
|
- | ||||
| 16 | 7902P057-60 | Glass, Lamp Guard | 1 |
|
- | ||||
| 17 | 7106A019-60 | Hinge, Upper | 2 |
|
- | ||||
| 17 | 7106A020-60 | Hinge, Oven Door | 2 |
|
- | ||||
| 17 | 7106A013-60 | Hinge, Lower Door | 1 |
|
- | ||||
| 17 | 7106A012-60 | Hinge, Upper Door | 1 |
|
- | ||||
| 18 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 19 | 7701P068-60 | Handle, Latch (blk) | 1 |
|
- | ||||
| 20 | 8009P011-60 | Lever, Latch | 1 |
|
- | ||||
| 21 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 22 | 8002P072-60 | Latch Assy. (Replaces: 8002P016-60) | 1 |
|
$ 306.52 | ||||
| 23 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 23 | 2618F056-51 | Panel, Side-lt | 1 |
|
- | ||||
| 24 | 2618F055-51 | Panel, Side Right | 1 |
|
- | ||||
| 25 | 7801P005-60 | Rack | 1 |
|
- | ||||
| 26 | 7801P007-60 | Rack, Offset | 1 |
|
- | ||||
| 27 | 3804W034-51 | Retainer, Bottom | 1 |
|
- | ||||
| 28 | 3804F054-51 | Retainer, Insulation | 1 |
|
- | ||||
| 29 | 3804F011-45 | Retainer | 1 |
|
- | ||||
| 30 | 3804F052-51 | Ret Rear Insul | 1 |
|
- | ||||
| 31 | 3804F053-51 | Retainer,top | 1 |
|
- | ||||
| 32 | 3604F101-80 | Shield, Air | 1 |
|
- | ||||
| 33 | 3604F048-80 | Shield, Terminal | 1 |
|
- | ||||
| 34 | 3807F176-15 | Support, Broil Element | 1 |
|
- | ||||
| 35 | 3807F135-80 | Support | 1 |
|
- | ||||
| 36 | 7403P007-60 | Switch, Door Lock | 1 |
|
- | ||||
| 37 | 7403P063-60 | Switch, High Limit | 1 |
|
$ 156.41 | ||||
| 38 | W10124350 | Not Required Part Or See Note | 3 |
|
- | ||||
| 38 | 7403P001-60 | Switch, Fan----na | 1-2 |
|
- | ||||
| 39 | 8026P014-60 | Tube, Oven Vent | 1 |
|
- | ||||
| 40 | 8112P006-60 | Manual, Use & Care |
|
- |
