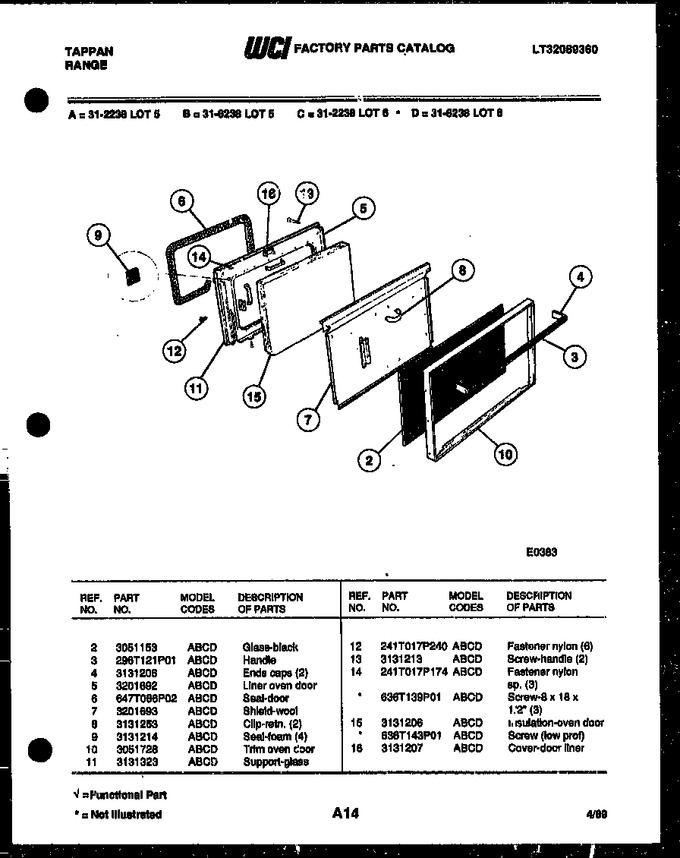

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3051153		Glass-black		Appelez-nous	-
3	296T121P01		Handle		Appelez-nous	-
4	3131206		Ends Caps (2)		Appelez-nous	-
5	3201692		Liner, Oven Door		Appelez-nous	-
6	647T086P02		Seal-door		Appelez-nous	-
7	3201693		Shield, Wool		Appelez-nous	-
8	3131253		Clip Retn (2)		Appelez-nous	-
9	3131214		Seal, Foam (4)		Appelez-nous	-
10	3051728		Trim, Oven Door		Appelez-nous	-
11	3131323		Support, Glass		Appelez-nous	-
12	241T017P240		Fastener-nylon (6)		Appelez-nous	-
13	3131213		Screw, Handle (2)		Appelez-nous	-
14	241T017P174		Fastener-nylon Sp (3)		Appelez-nous	-
15	3131206		Insulation-oven Door		Appelez-nous	-
16	3131207		Cover, Door Liner		Appelez-nous	-
14A	636T139P01		Screw 8 X 18 X 1/2`` (3) (non-illustrated)		Appelez-nous	-
15A	636T143P01		Screw		Appelez-nous	-
