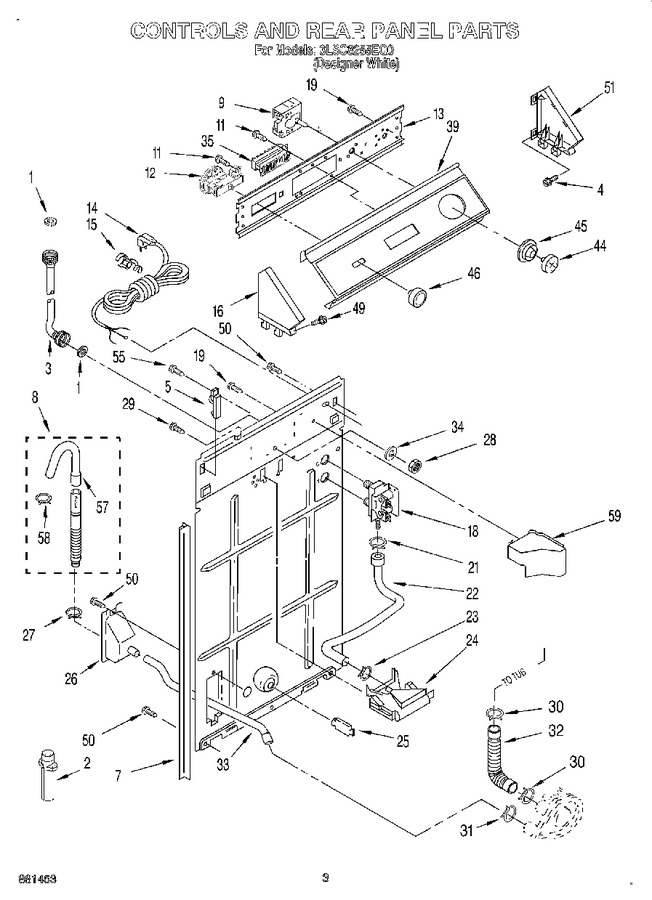

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 6.93 | |||||
| 2 | 3363920A | Adapter-drain Hose (Replaces: 3363920) |
|
$ 7.91 | |||||
| 3 | WPW10489643 | Hose, Water Inlet (2) (Replaces: 3366916) |
|
$ 70.16 | |||||
| 4 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3951123 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 56.11 | ||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 33.20 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 54.81 | ||||
| 9 | 3950560 | Timer, Control (50 Hz.) (motor Not A Service Part) |
|
$ 181.26 | |||||
| 11 | W10915367 | Screw, 8-18 X 5/16 (Replaces: 3400808) |
|
- | |||||
| 12 | 3356464 | Switch, Water Level (for Designer White Model) |
|
$ 97.70 | |||||
| 13 | 3950194 | Bracket, Control |
|
- | |||||
| 14 | 3950972 | Cord, Power |
|
- | |||||
| 15 | 387710 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 3950975 | Cap, End (l.h.) (for Designer White Model) |
|
- | |||||
| 18 | WP3360397 | Valve, Water Mixing (Replaces: 3360397) |
|
$ 259.24 | |||||
| 19 | WP3351614 | Screw, 10-24 X 3/8 (2) (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 21 | WP596669 | (alt.) (Replaces: 272846) |
|
Immediately | $ 7.56 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 7.56 | ||||
| 21 | WP596669 | (alt.) (Replaces: 353367) |
|
Immediately | $ 7.56 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 3357328) |
|
Immediately | $ 22.30 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.56 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 45.41 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 17.01 | ||||
| 26 | WPW10358149 | Connector Drian Hose (Replaces: 3355497) |
|
Immediately | $ 43.34 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 28 | W10080180 | Nut (Replaces: 271166) |
|
$ 12.13 | |||||
| 29 | WP308544 | Screw (Replaces: 274707) |
|
Immediately | $ 6.98 | ||||
| 30 | WP616099 | Clamp, Hose (Replaces: 371504) |
|
Immediately | $ 7.03 | ||||
| 31 | WP356138 | Clamp, Hose (Replaces: 3366912) |
|
Immediately | $ 7.67 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 3950340) |
|
Immediately | $ 24.01 | ||||
| 33 | 3359816 | Hose Pump To Drian |
|
- | |||||
| 34 | 138479 | Lock Washer |
|
- | |||||
| 35 | 3950837 | Switch, Touch-pad (7) (for Designer White Model) |
|
- | |||||
| 39 | 3950965 | Panel, Console (for Designer White Model) |
|
- | |||||
| 44 | W10807860 | Knob, Timer (for Designer White Model) (Replaces: 3948580) |
|
Immediately | $ 44.97 | ||||
| 45 | WP3957841 | Dial, Timer (for Designer White Model) (Replaces: 3948587) |
|
$ 40.82 | |||||
| 46 | WP3957796 | Knob, Control (Replaces: 3950759) |
|
Immediately | $ 49.35 | ||||
| 49 | WP388326 | Screw, 8-18 (2) (panel To Top) (Replaces: 388326) |
|
$ 7.30 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 51 | 3950974 | Cap , End (r.h.) (for Designer White Model) |
|
- | |||||
| 55 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 57 | WP3357027 | Nozzel, Hose Drian (Replaces: 3357027) |
|
$ 83.88 | |||||
| 58 | WP3357331 | Clamp, Drain Hose (Replaces: 3366913) |
|
$ 6.80 | |||||
| 59 | 3950571 | Shield, Inlet |
|
- |
