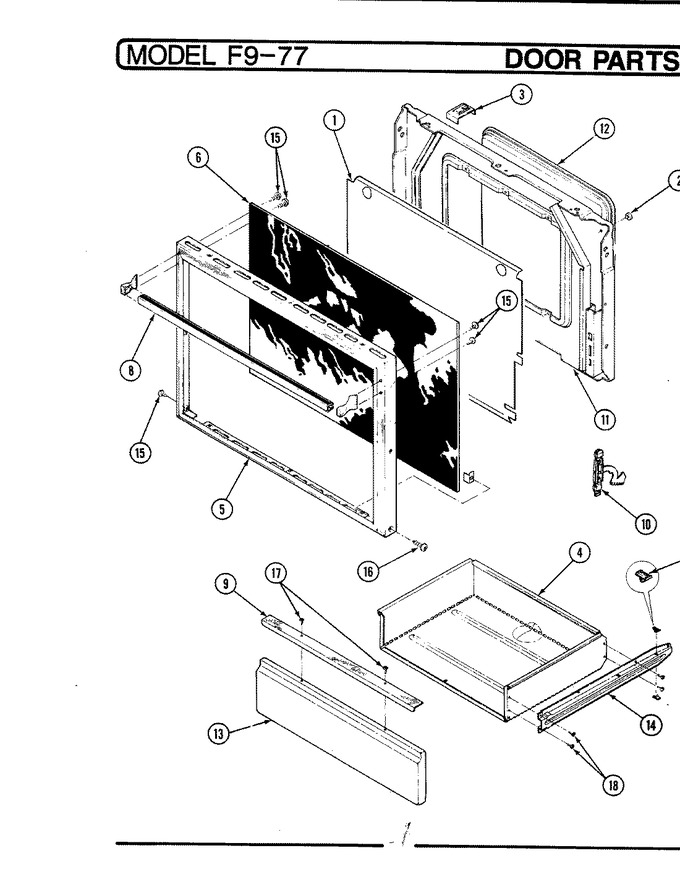

01 - Body
02 - Control Panel
03 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F095-51 | Baffle | 1 |
|
- | ||||
| 1 | 3802F044-51 | Brace, Drawer | 1 |
|
- | ||||
| 1 | 3801F031-51 | Bracket | 1 |
|
- | ||||
| 2 | 8003P002-60 | Bumper Door (round) | 1 |
|
- | ||||
| 3 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 4 | 3405F008-20 | Drawer Assy. | 1 |
|
- | ||||
| 5 | 7706E007 | Frame, Ovn Door | 1 |
|
- | ||||
| 6 | 7902P275-60 | Glass, Door | 1 |
|
- | ||||
| 7 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 7 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 8 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 9 | 7728P012-60 | Insert, Oven Door Handle | 1 |
|
- | ||||
| 9 | 7701P014-71 | Handle, Door White | 1 |
|
- | ||||
| 10 | 3418F030-34 | Hinge, Oven Door (rt) | 1 |
|
- | ||||
| 10 | 3418F029-34 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 11 | 2402W125-12 | Lining Assy, Ov Dr | 1 |
|
- | ||||
| 11 | 2402W128-15 | Lining | 28 |
|
- | ||||
| 12 | 2410F012-51 | Pad, Inner Ov Dr | 1 |
|
- | ||||
| 12 | 2410W028-12 | Pad Assy, O.d. Solid | 1 |
|
- | ||||
| 13 | 2416F013-71 | Panel, Svc Door | 1 |
|
- | ||||
| 13 | 2416F013-78 | Panel, Svc Door | 1 |
|
- | ||||
| 14 | 3406J007 | Runner, Outer | 1 |
|
- | ||||
| 14 | 3406F020-80 | Runner, Inner | 1 |
|
- | ||||
| 15 | 7101P123-60 | Screw | 1 |
|
- | ||||
| 16 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 1 |
|
Immediately | $ 6.85 | |||
| 17 | 7101P225-60 | Screw, Svc Door | 1 |
|
- | ||||
| 18 | 7101P013-60 | Screw, Special | 1 |
|
- | ||||
| 18 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 18 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 18 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 18 | 7208P013-60 | Seal, Foam Tape | 1 |
|
- |
