01 - Body

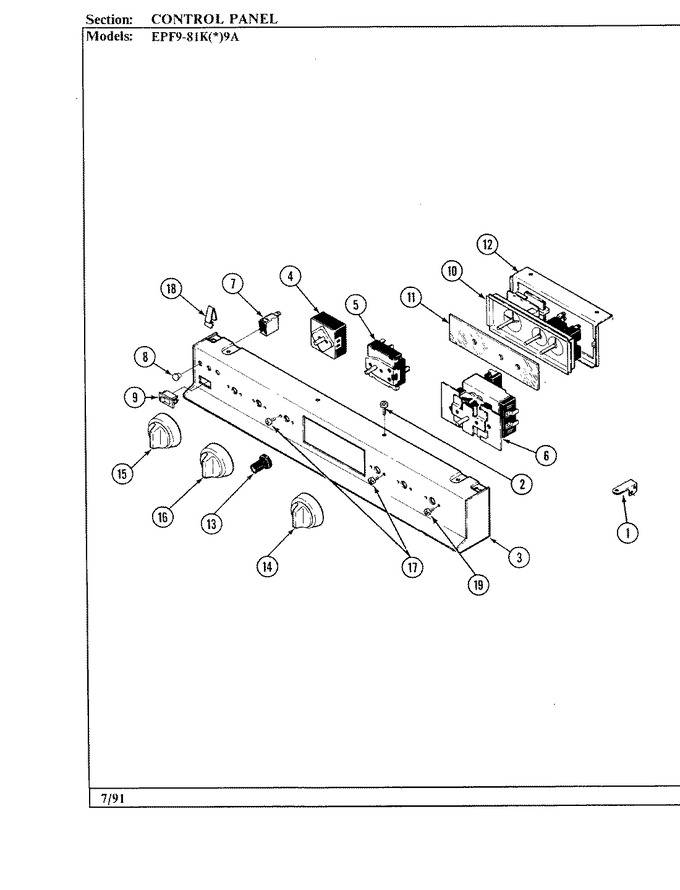

02 - Control Panel (epf9-81kx9a)
03 - Door (epf9-81ks9a)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 1 | 3801F047-34 | Bracket,control Panel (r) | 00 |
|
- | ||||
| 1 | 3801F049-34 | Bracket,control Panel (l) | 00 |
|
- | ||||
| 2 | WPW10068250 | Screw (Replaces: 7101P074-60) | 00 |
|
$ 3.66 | ||||
| 2 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 00 |
|
$ 6.98 | ||||
| 3 | 7722A097-60 | Panel, Control | 00 |
|
- | ||||
| 4 | W11122006 | Switch, Inf. 250v (Replaces: 7403P181-60) | 00 |
|
$ 145.12 | ||||
| 5 | 7403P037-60 | Switch, Selector | 00 |
|
- | ||||
| 6 | 7404P050-60 | Thermostat | 00 |
|
- | ||||
| 7 | 7407P017-60 | Lamp, Signal | 00 |
|
- | ||||
| 8 | 7730P001-60 | Lens, Signal Lamp | 00 |
|
- | ||||
| 9 | 7403P067-60 | Switch, Rocker (blk) | 00 |
|
$ 91.35 | ||||
| 10 | 7601P063-60 | Clock | 00 |
|
- | ||||
| 11 | 7902P027-60 | Glass, Clock | 00 |
|
- | ||||
| 12 | 3801F113-51 | Bracket, Clock Mtg | 00 |
|
- | ||||
| 13 | 7711P126-60 | Knob, Clock | 00 |
|
- | ||||
| 14 | 7735P017-60 | Knob, Thermostat | 00 |
|
- | ||||
| 15 | 7737P015-60 | Knob, Surface Switch | 00 |
|
- | ||||
| 16 | 7739P018-60 | Knob, Selector Switch | 00 |
|
- | ||||
| 17 | 7101P279-60 | Screw W/washer | 00 |
|
- | ||||
| 18 | WP25-7220 | Clip, Top Retainer (Replaces: 7112P042-60) | 00 |
|
$ 10.77 | ||||
| 19 | 7101P280-60 | Screw W/washer (blk) | 00 |
|
- |
