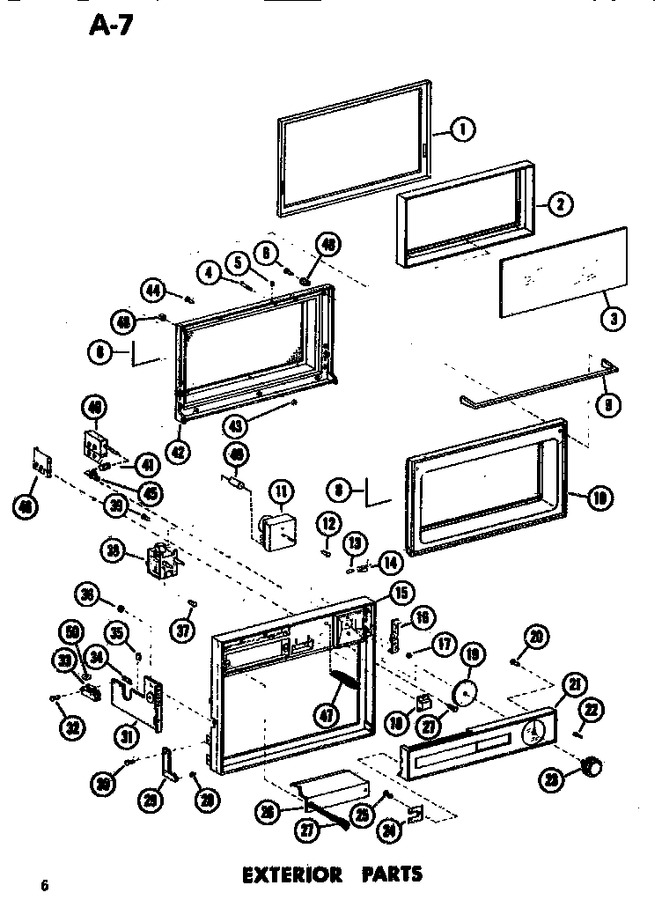

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7139601 | Gasket, Door |
|
- | |||||
| 1 | M0275141 | Tape, Gasket To Door, 1`` |
|
- | |||||
| 2 | D7138801 | Door-inner |
|
- | |||||
| 3 | A3167902 | Window-inner Door |
|
- | |||||
| 4 | A3189601 | Latch |
|
- | |||||
| 5 | M0208014 | Screw |
|
- | |||||
| 6 | M0227526 | Screw |
|
- | |||||
| 8 | M0275554 | Sealer Ft. A / K |
|
- | |||||
| 9 | C3671302 | Door Handle |
|
- | |||||
| 10 | D7227602 | Door-outer |
|
- | |||||
| 11 | C8768401 | Timer |
|
- | |||||
| 12 | M0201432 | Screw |
|
- | |||||
| 13 | A3171201 | Bulb |
|
- | |||||
| 14 | B5668701 | Lampholder |
|
- | |||||
| 15 | D7139202 | Bezel-oc |
|
- | |||||
| 16 | B5678301 | Retainer-escutcheon |
|
- | |||||
| 17 | M0287401 | Nut |
|
- | |||||
| 18 | C3672304 | Push Button-light |
|
- | |||||
| 19 | C8723101 | Disc-timer |
|
- | |||||
| 20 | M0220219 | Screw-shoulder |
|
- | |||||
| 21 | D7139002 | Escutcheon |
|
- | |||||
| 22 | R0191014 | Spring Clip |
|
- | |||||
| 23 | D7229301 | Knob-timer |
|
- | |||||
| 24 | B5662803 | Clip-escutcheon |
|
- | |||||
| 25 | M0234117 | Screw |
|
- | |||||
| 26 | C3671401 | Baffle-oven Light |
|
- | |||||
| 27 | M0228015 | Screw |
|
- | |||||
| 28 | M0274032 | Washer Non-metal |
|
- | |||||
| 28 | A3168101 | See Svc Ltr Cr-163d |
|
- | |||||
| 29 | C8732702 | Hinge Assy Lh |
|
- | |||||
| 29 | C8732701 | Hinge Assy Rh |
|
- | |||||
| 30 | M0253230 | Screw |
|
- | |||||
| 31 | C3676102 | Assembly, Counter Balance Brac |
|
- | |||||
| 31 | C3676101 | Brkt-cb-assy-rh A |
|
- | |||||
| 32 | M0202521 | Screw |
|
- | |||||
| 33 | A3171606 | Switch Preformed |
|
- | |||||
| 34 | M0289502 | Speed Nut |
|
- | |||||
| 35 | M0114901 | Clip |
|
- | |||||
| 36 | M0283401 | Nut, Self Thread |
|
- | |||||
| 37 | M0216517 | Screw |
|
- | |||||
| 38 | C3672602 | Switch |
|
- | |||||
| 39 | M0228015 | Screw |
|
- | |||||
| 40 | B5718801 | Defrost Switch |
|
- | |||||
| 41 | A3245201 | Spring |
|
- | |||||
| 42 | D7147004 | Inner Door Ring |
|
- | |||||
| 43 | M0288801 | Nut K |
|
- | |||||
| 44 | M0253418 | Screw |
|
- | |||||
| 45 | B5732201 | Sleeve |
|
- | |||||
| 46 | B5732101 | Bracket |
|
- | |||||
| 47 | A3245302 | Light-pilot |
|
- | |||||
| 48 | B5745801 | Bushing, Door |
|
- | |||||
| 49 | M0305008 | Resistor |
|
- | |||||
| 50 | A3145101 | Washer K |
|
- |
