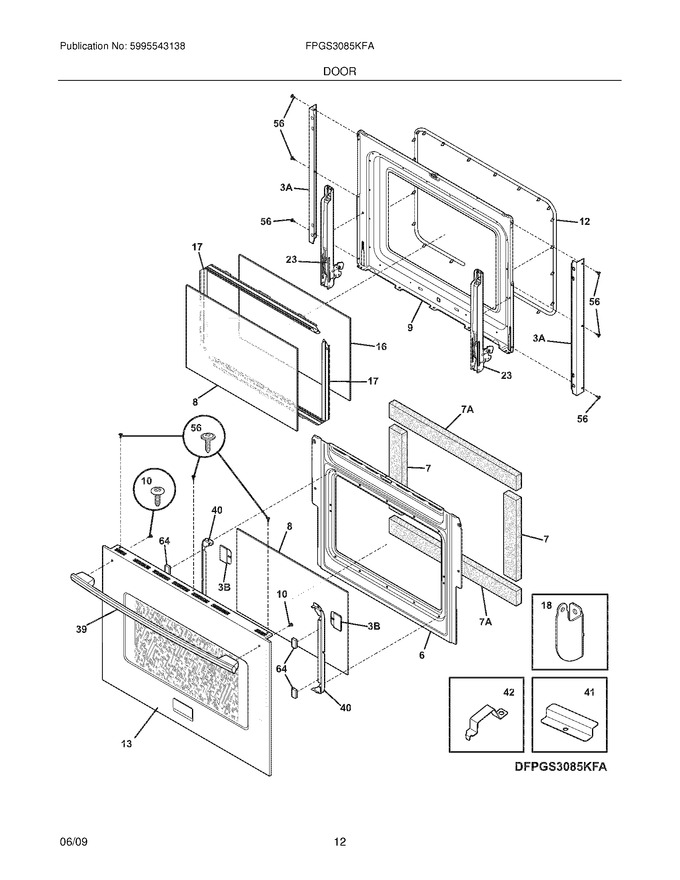

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260522		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318411610		Liner,oven Door				$ 142.00
10	5304472906		Screw,handle Mtg ,no.10-24 X 1.5 ,(2)				$ 8.98
12	318053132		Gasket,oven Door Seal			Immediately	$ 159.56
13	318927801		Door Assembly,outer ,steel/glass ,stainless,w/badge		Appelez-nous	-
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,lower ,(2)   (Replaces: 318264710)				$ 72.05
18	316547900		Link,door ,(2) ,auto Rack				$ 20.56
23	318567100		Hinge,upper ,oven Door ,(2)				$ 84.74
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 112.88
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
3B	318262111		Cover,rear Door ,black ,(2)				$ 54.60
7A	318372016		Insulation,door ,(2)   (Replaces: 318372002)				$ 17.72
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,silver ,(4)				$ 15.17

    View Diagram in Separate Window       Print Part List
