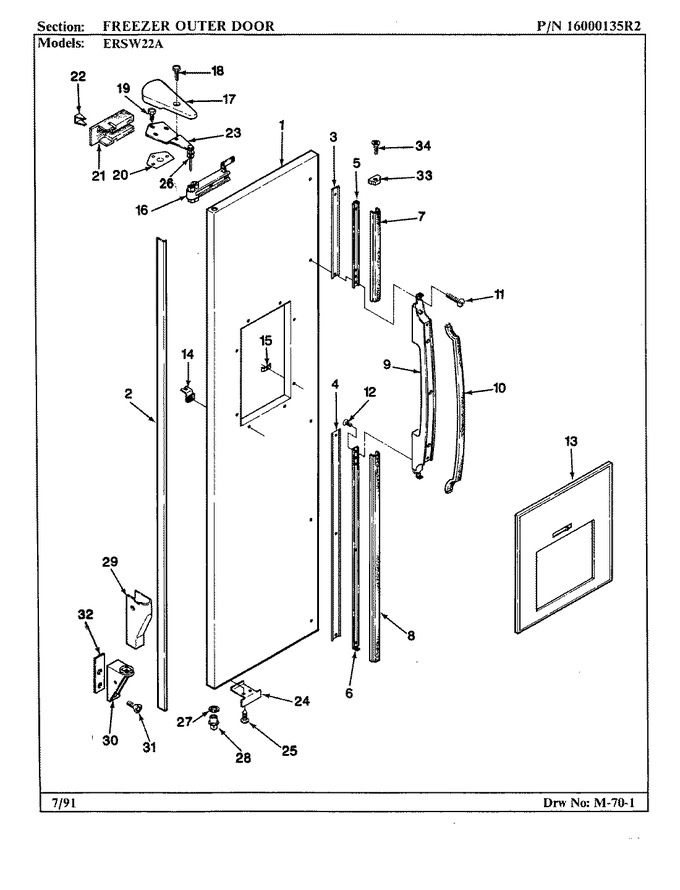

ERSW22A (BOM: BM35C) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	72041-2-WW	Panel, Outer Door	Appelez-nous	-
2	66651-4	Trim, Door	Appelez-nous	-
3	67299-6	Shim, Trim Lock	Appelez-nous	-
4	67299-7	Shim, Trim Lock	Appelez-nous	-
5	67156-3	Bracket, Handle	Appelez-nous	-
6	67156-4	Bracket, Handle	Appelez-nous	-
7	67805-8	Trim (upper)	Appelez-nous	-
8	67805-9	Trim (lower)	Appelez-nous	-
9	67385-1	Shim, Handle	Appelez-nous	-
9	67151-1	Handle, Door	Appelez-nous	-
10	65275-44	Screw	Appelez-nous	-
10	67882-2	Insert, Handle (lt Gry)	Appelez-nous	-
11	65275-29	Screw,handle Bottom (hex Head)	Appelez-nous	-
11	66799-3	Clip, Handle Screw	Appelez-nous	-
12	65275-31	Screw, Bracket To Handle	Appelez-nous	-
13	405004-103	Screw	Appelez-nous	-
13	W11233072	Screw (Replaces: 400026-12)		Immediately	$ 12.62
13	67580-7	Escutcheon Assy.	Appelez-nous	-
14	53732-2	U-nut Grounding	Appelez-nous	-
15	66799-1	Achor, Screw	Appelez-nous	-
16	54485-2	Door Closure	Appelez-nous	-
17	67229-4	Cover, Upper Hinge(wht.)	Appelez-nous	-
18	403060-1	Screw, Hinge Cover	Appelez-nous	-
19	WP3-24838-048	Screw (Replaces: 9986-87)			$ 7.00
20	65031-1	Shim, Upper Hinge	Appelez-nous	-
21	67645-1	Insulation Door	Appelez-nous	-
22	52614-1	Bracket, Closer	Appelez-nous	-
23	67456-4	Hinge, Top	Appelez-nous	-
24	67771-1	Stop,door	Appelez-nous	-
25	60123-2	Clip, Stop Screw	Appelez-nous	-
25	9986-117	Screw	Appelez-nous	-
26	52185-2	Washer	Appelez-nous	-
27	67483-3	Washer, Door Spacer		Immediately	$ 45.86
28	67486-1	Pin Lower Hinge	Appelez-nous	-
29	67117-1	Cover Hinge	Appelez-nous	-
29	401005-4	Screw, Cover	Appelez-nous	-
30	67773-2	Hinge, Lower	Appelez-nous	-
31	65275-46	Screw	Appelez-nous	-
32	67849-1	Shim Lower Hinge	Appelez-nous	-
32	67874-1	Tapping Plate, Lower Hinge	Appelez-nous	-
33	67380-3	Endcap, Handle	Appelez-nous	-
34	414004-7	Screw, Handle End Cap	Appelez-nous	-
34	67913-1	Wire Harness, Door	Appelez-nous	-
