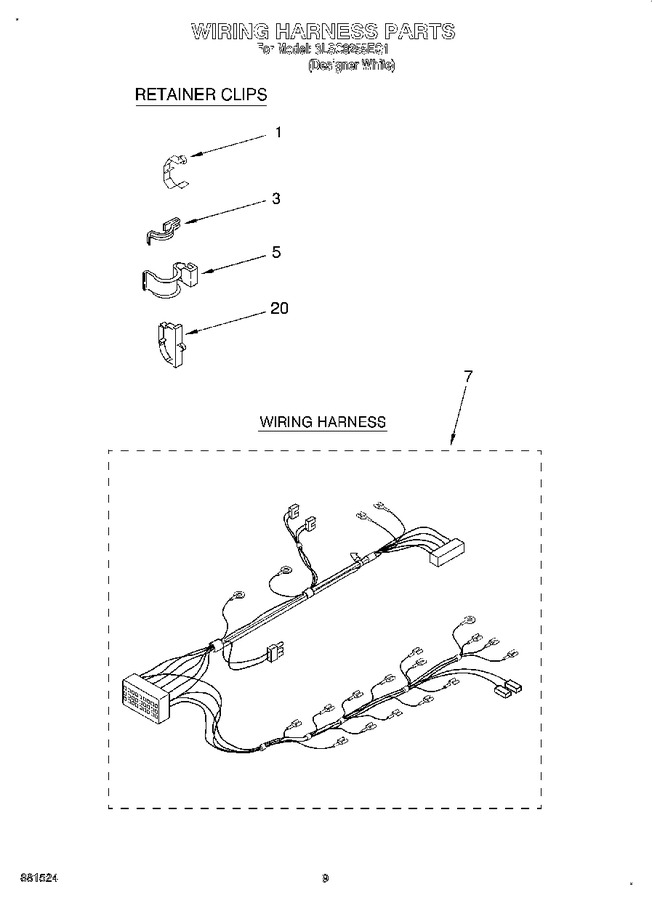

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10113937		Clip, Harness   (Replaces: 357572)				$ 9.75
3	8528351		Clip, Harness   (Replaces: 3347812)		Appelez-nous	-
5	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
7	3952364		Wiring Harness		Appelez-nous	-
20	3352944		Clip, Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
