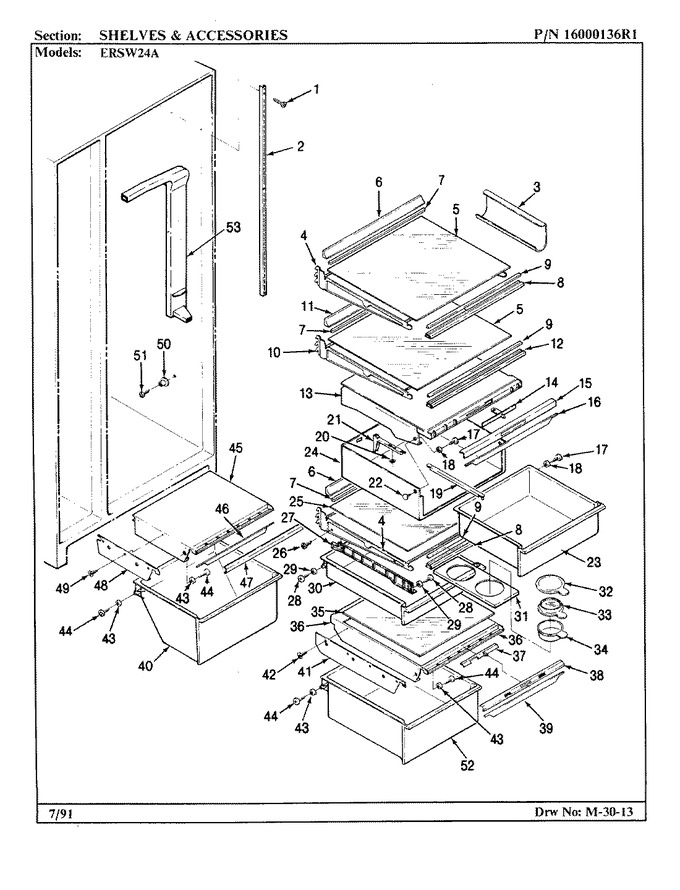

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	400037-28		Screw		Appelez-nous	-
2	67311-1		Rail, Shelf Support		Appelez-nous	-
3	67308-3		Holder, Wine Bottle		Appelez-nous	-
4	67273-2		Frame, Shelf		Appelez-nous	-
5	67267-6		Glass, Cantilever		Appelez-nous	-
6	67309-15		Trim, Cantilever (rear)		Appelez-nous	-
7	67266-5		Shelf Seal		Appelez-nous	-
8	67783-12		Trim, Cantilever (front)		Appelez-nous	-
9	67265-5		Gasket, Shelf Front		Appelez-nous	-
10	67274-2		Frame, Meat Shelf		Appelez-nous	-
11	67309-16		Trim, Cantilver (rear)		Appelez-nous	-
12	67783-13		Trim, Cantilever (front)		Appelez-nous	-
13	67649-4		Rail, Meat Keeper		Appelez-nous	-
14	67074-2		Slide, Control		Appelez-nous	-
15	67071-4		Trim, Meat Keeper Rail		Appelez-nous	-
16	67677-2		Seal, Meat Pan		Appelez-nous	-
17	65275-6		Screw				$ 5.48
18	67423-1		Roller, Crisper Pan		Appelez-nous	-
19	67073-1		Linkage, Meat Keeper		Appelez-nous	-
20	431019-511		Nut		Appelez-nous	-
21	67072-3		Actuator, Meat Keeper		Appelez-nous	-
22	67688-1		Plug Button		Appelez-nous	-
23	67650-24		Pan, Meat		Appelez-nous	-
24	67069-6		Housing, Meat Pan		Appelez-nous	-
25	67267-7		Glass, Cantilever		Appelez-nous	-
26	65275-32		Screw		Appelez-nous	-
27	67658-2		Rail		Appelez-nous	-
27	67658-1		Slide Rail		Appelez-nous	-
28	65275-6		Screw				$ 5.48
29	67423-1		Roller, Crisper Pan		Appelez-nous	-
30	67650-21		Pan, Crisper		Appelez-nous	-
31	67164-2		Organizer, Micro		Appelez-nous	-
32	67632-1		Cover, Plastic		Appelez-nous	-
33	67630-1		Cover, Glass		Appelez-nous	-
34	67631-1		Dish, Micro		Appelez-nous	-
35	67489-6		Glass, Crisper Shelf		Appelez-nous	-
36	67201-2		Shelf, Crisper		Appelez-nous	-
37	67491-2		Slide, Control		Appelez-nous	-
38	67204-13		Trim, Crisper Shelf		Appelez-nous	-
39	67731-5		Seal		Appelez-nous	-
40	67650-23		Pan, Crisper		Appelez-nous	-
41	67465-14		Bracket Side Crisper		Appelez-nous	-
41	67465-13		Bracket Side Crisper		Appelez-nous	-
42	65275-28		Screw		Appelez-nous	-
43	67423-1		Roller, Crisper Pan		Appelez-nous	-
44	65275-34		Screw		Appelez-nous	-
45	67202-5		Shelf, Lower		Appelez-nous	-
46	67731-5		Seal		Appelez-nous	-
47	67204-14		Trim, Crisper Shelf		Appelez-nous	-
48	67465-15		Bracket (lt)		Appelez-nous	-
48	67465-16		Bracket (rt)		Appelez-nous	-
49	65275-28		Screw		Appelez-nous	-
50	67162-1		Support, Crisper		Appelez-nous	-
51	W11233072		Screw   (Replaces: 400026-12)			Immediately	$ 12.62
52	67650-22		Pan, Crisper		Appelez-nous	-
53	67526-2		Tunnel, Air		Appelez-nous	-
53	28013-2		Rivet, Air Tunnel		Appelez-nous	-
