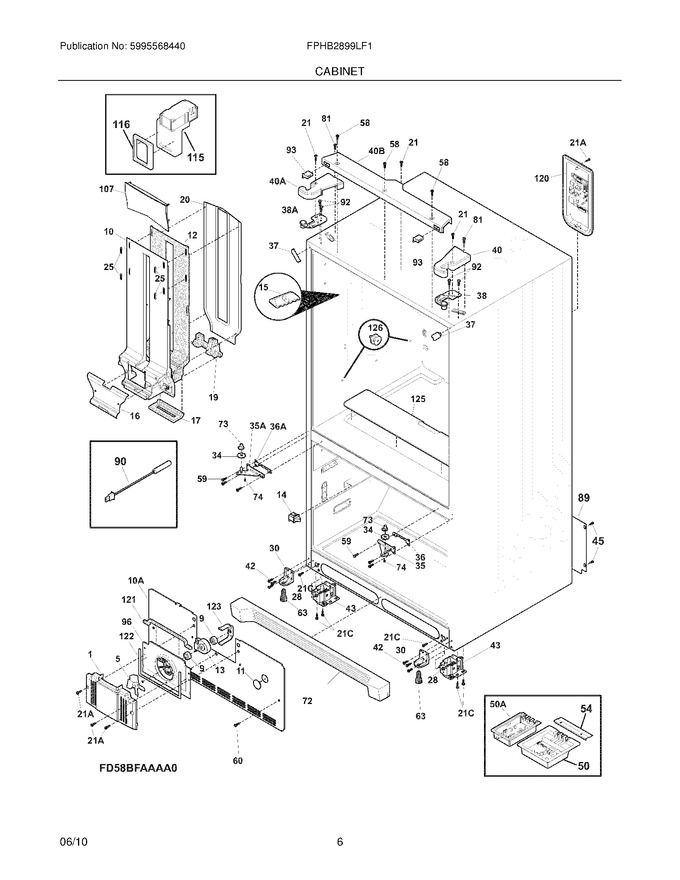

07 - Cabinet


09 - Shelves


11 - System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241859701		Cover-fan				$ 49.86
9	241518301		Bushing,motor Mounting				$ 66.63
10	242072002		Cover-air Duct			Immediately	$ 139.91
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	242072401		Insulation-air Duct				$ 44.66
13	809069220		Motor,evaporator Fan   (Replaces: 241509402)			Immediately	$ 154.14
14	242060201		Switch-light/lamp,frzr Door				$ 43.99
15	241891102		Light-led				$ 75.00
16	242072101		Cover-damper				$ 50.63
17	5303918479		Gasket-air Duct/liner   (Replaces: 242071901)				$ 45.41
19	242072601		Support-eps Damper				$ 47.78
20	242072201		Cover-air Duct,rear				$ 96.95
21	241732101		Screw,10-32 X 1/2			Immediately	$ 15.60
25	241949502		Clip,air Vent				$ 20.48
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 31.33
30	241778701		Bracket-anti Tip				$ 26.54
34	241868301		Washer,hinge ,nylon ,(2)				$ 31.19
35	241767211		Hinge-lower,rh   (Replaces: 241767205)				$ 102.38
36	241868201		Spacer,door ,lower Rh				$ 49.62
37	5304494164		Trim-cabinet Corner,gray ,(2)   (Replaces: 240337615)				$ 8.27
38	241761301		Bracket-upper Hinge,rh				$ 66.25
40	241778007		Cover-upper Hinge,graye ,rh		Appelez-nous	-
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy,front ,(2)   (Replaces: 240335006)			Immediately	$ 31.33
45	241500303		Screw,hex Washer Head ,8-18ab X 0.500			Immediately	$ 4.55
50	241996322		Board-main Power		Appelez-nous	-
54	241532401		Channel				$ 30.47
58	241500305		Screw   (Replaces: 241853202)				$ 3.03
59	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	242054804		Grille/kickplate   (Replaces: 242054801)				$ 83.64
73	242075701		Cam-lower Hinge				$ 22.75
74	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
89	5304520905		Cover-access,w/label   (Replaces: 241733905)			Immediately	$ 74.03
90	240597220		Sensor   (Replaces: 240597203)			Immediately	$ 5.16
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
93	241835504		Switch-light,grey		Appelez-nous	-
96	241860601		Shroud-evap Fan Mtg			Immediately	$ 131.83
107	241963102		Duct-air,top				$ 36.41
115	5303918899		Damper,motorized   (Replaces: 241518501)			Immediately	$ 73.24
116	241518601		Seal-damper,foam				$ 9.22
121	241860103		Gasket-evap,upper			Immediately	$ 3.73
122	241860117		Gasket-evap,bottom   (Replaces: 241860102)			Immediately	$ 11.21
123	242135301		Clip,evap Fan Motor   (Replaces: 241517701)				$ 7.79
125	242071201		Cover,sump				$ 114.82
126	242081301		Screw-shoulder		Appelez-nous	-
10A	241860402		Cover-evap Coil,lower			Immediately	$ 130.91
21A	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 15.92
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
35A	241767212		Hinge-lower,lh   (Replaces: 241767206)				$ 103.90
36A	241868202		Spacer,door ,lower Lh				$ 23.51
38A	241761302		Bracket-upper Hinge,lh				$ 64.49
40A	5304494165		Cover-upper Hinge,gray ,lh   (Replaces: 241778008)				$ 73.57
40B	241862404		Cover-upper Hinge,gray ,center		Appelez-nous	-
F120	241956703		Board Assembly,control ,ice Maker		Appelez-nous	-
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
F50A	241891604		Board-led Power		Appelez-nous	-
F50A	241852501		Clip,wiring Harness				$ 15.60
FNI	5303918416		Thermistor Kit,t-3 Suction Lin ,icemaker				$ 105.16
FNI	242061601		Harness-wiring,air Duct		Appelez-nous	-
NI	242072501		Cover-eps,damper				$ 19.72
NI	242006903		Duct-air,freezer   (Replaces: 242006902)			Immediately	$ 63.70
NI	242025201		Pipe,foam		Appelez-nous	-
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 18.20
NI	241969001		Cap,screw				$ 16.69
NI	5304521649		Harness-wiring   (Replaces: 242015904)			Immediately	$ 101.63
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
