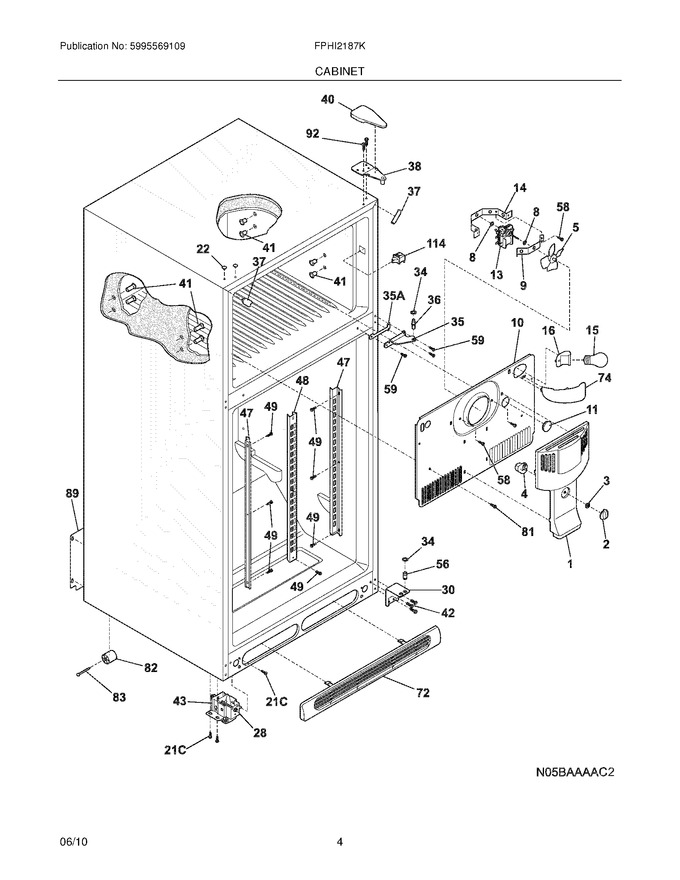

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	240355402		Cover-fan		Appelez-nous	-
2	240367001		Knob-damper Control			Immediately	$ 57.64
3	5303212803		Nut				$ 2.10
4	240367401		Damper-fan Cover				$ 41.32
5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
8	240438003		Bushing-motor Mtg,(2)   (Replaces: 242014101)				$ 17.44
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	240313611		Cover-evap Coil,w/light				$ 55.90
11	5303208309		Plug-hole, Factory Test				$ 45.50
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
15	5304511738		Light Bulb   (Replaces: 241560701)			Immediately	$ 24.26
16	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
22	215774922		Plug Button,silver Mist   (Replaces: 215774920)				$ 19.72
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 31.33
30	240314011		Bracket-lower Hinge,black   (Replaces: 240314003)			Immediately	$ 77.26
34	240311303		Washer,hinge ,nylon ,(2)			Immediately	$ 10.62
35	240313802		Bracket-ctr Hinge,white			Immediately	$ 70.16
36	240516402		Pin-center Hinge		Appelez-nous	-
37	240337614		Trim-cabinet Corner,silver Mist ,(2)				$ 8.40
38	240313703		Bracket-upper Hinge   (Replaces: 240313702)			Immediately	$ 32.27
40	240354405		Cover-upper Hinge,silver Mist				$ 7.77
41	5304500407		Grommet,shelf Mtg ,1.25`` ,lh ,(4)   (Replaces: 5308009759)			Immediately	$ 6.38
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy,adjustable ,front ,(2)   (Replaces: 240335005)			Immediately	$ 31.33
47	218233301		Channel-shelf Mtg,side ,(2)		Appelez-nous	-
48	241566901		Channel-shelf Mtg,center (mll)				$ 28.92
49	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
56	240516502		Pin-lower Hinge				$ 72.80
58	5304456287		Screw,hex Washer Head ,8-15a X 0.500				$ 0.76
59	240442708		Screw-no.10-32 X 3/4,white				$ 8.34
72	241839411		Grille/kickplate,silver Metallic				$ 22.54
74	240354302		Shield-light,frzr				$ 19.24
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
89	241733911		Cover-access,with Label   (Replaces: 241733907)				$ 50.51
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
35A	240336802		Spacer-hinge,center			Immediately	$ 18.43
F114	240505801		Switch-light/lamp				$ 66.63
F13	241854501		Motor-evap Fan				$ 178.70
NI	240568606		Seal-coil Cover				$ 12.76
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
NI	241500303		Screw,hex Washer Head ,8-18ab X 0.500			Immediately	$ 4.55
NI	218515401		Clip				$ 17.72
NI	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 15.17
