New Model Search:

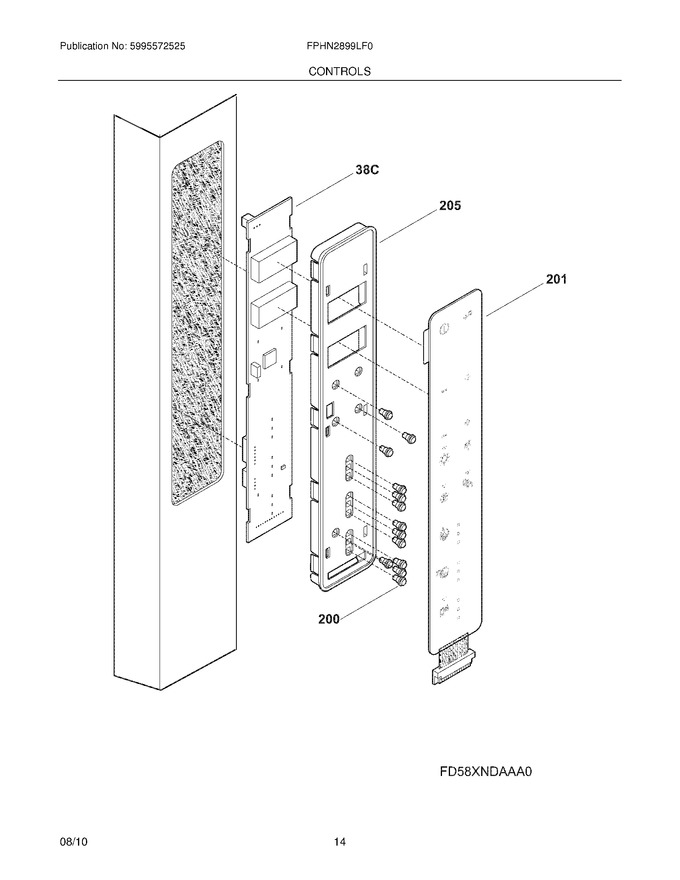

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 200 | 241609201 | Light Pipe |
|
$ 12.05 | |||||
| 201 | 242070803 | Switch-membrane |
|
$ 141.26 | |||||
| 205 | 242066203 | Housing,disp/controls |
|
$ 48.91 | |||||
| F38C | 242048320 | Board-control,u/i (Replaces: 242048302) |
|
Immediately | $ 266.18 | ||||
| NI | 241510904 | Harness-dispenser,grounding |
|
$ 60.96 | |||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 |
