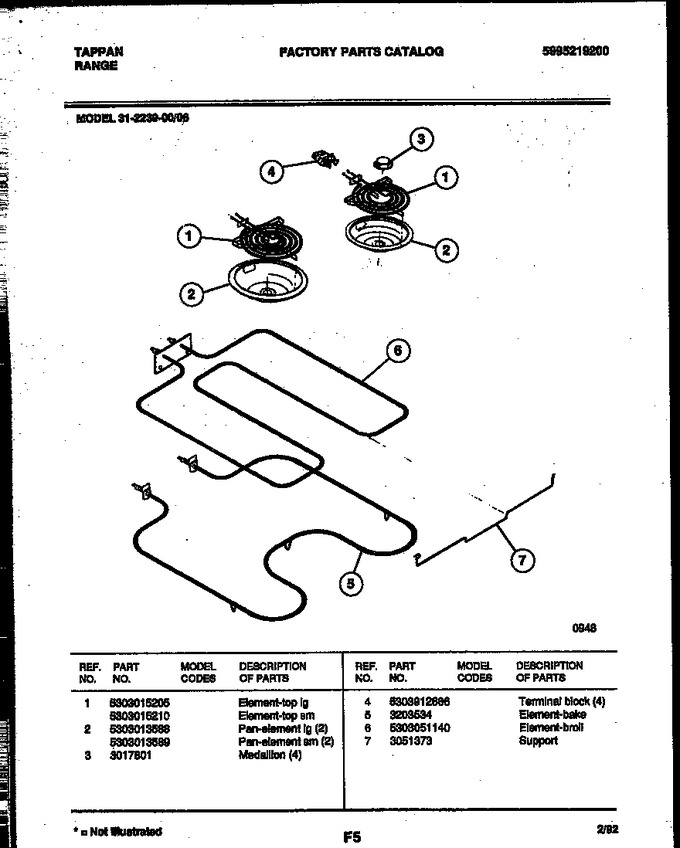

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015205 | Element-top Lg |
|
- | |||||
| 2 | 316048413 | Pan-element Lg (2) (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 3 | 3017801 | Medallion (4) |
|
- | |||||
| 4 | 5303935058 | Terminal Block (4) (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| 5 | 316075103 | Element-bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 6 | 5303051140 | Element-broil |
|
$ 202.71 | |||||
| 7 | 3051373 | Support |
|
- | |||||
| 1A | 5303015210 | Element-top Sm |
|
- | |||||
| 2A | 5303013589 | Pan-element Sm (2) |
|
- |
