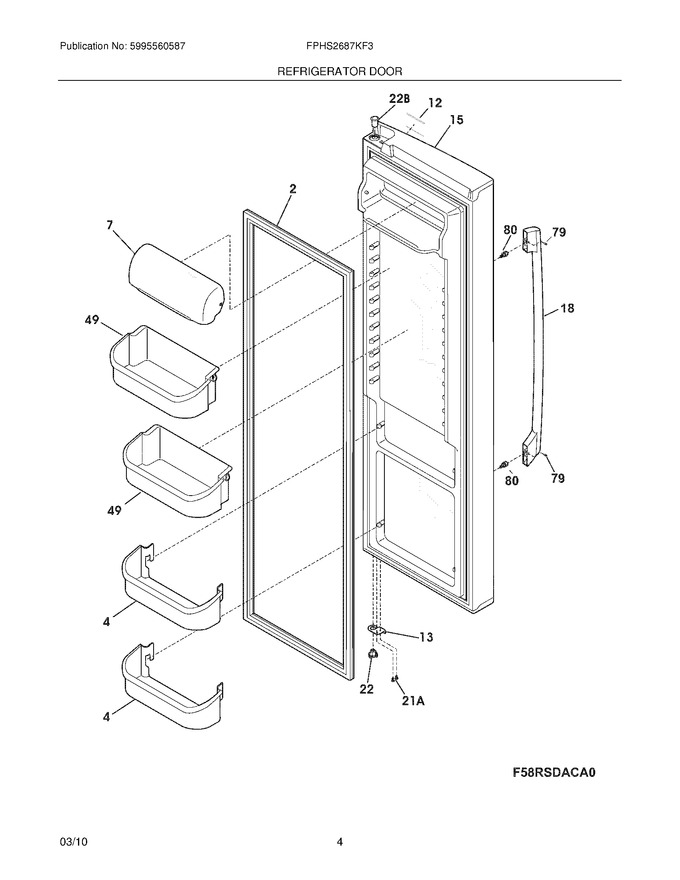

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786013 | Gasket-refr Door,white ,magnetic (Replaces: 241786001) |
|
$ 95.90 | |||||
| 4 | 240323002 | Bin-door,pseudo ,clear ,bottom |
|
Immediately | $ 67.21 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 12 | 242015101 | Label-nameplate |
|
$ 4.55 | |||||
| 13 | 241942603 | Door Stop,black ,ref |
|
$ 20.56 | |||||
| 15 | 241837260 | Door-refr,stainless ,complete Assy |
|
$ 419.25 | |||||
| 18 | 241972501 | Handle-door,stainless |
|
$ 227.22 | |||||
| 22 | 241990301 | Bearing-hinge,gray |
|
$ 7.09 | |||||
| 49 | 240356402 | Bin-door,gallon (Replaces: 241808221) |
|
Immediately | $ 106.83 | ||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760403 | Bearing,hinge ,top |
|
Immediately | $ 19.13 | ||||
| NI | 241780403 | Liner,bin,bin |
|
$ 28.77 |
