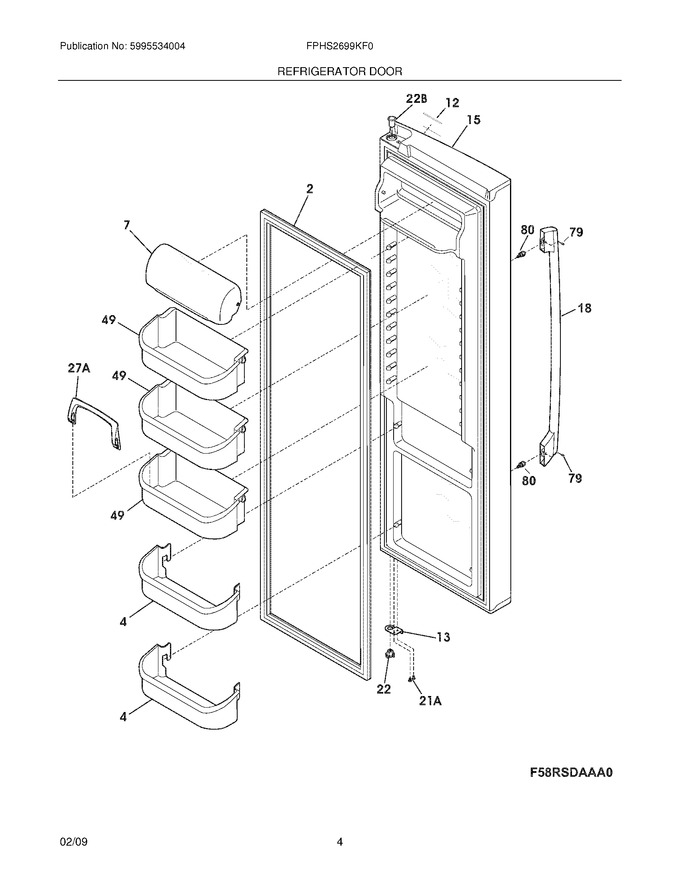

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 241786001)				$ 95.90
4	240323002		Bin-door,pseudo ,bottom			Immediately	$ 67.21
7	240326203		Door-dairy				$ 40.37
12	242015101		Label-nameplate				$ 4.55
13	241942603		Door Stop,black ,ref				$ 20.56
15	241837260		Door-refr,stainless ,complete Assy				$ 419.25
18	241972501		Handle-door,stainless				$ 227.22
22	241990301		Bearing-hinge,gray				$ 7.09
49	240356402		Bin-door,gallon   (Replaces: 241808221)			Immediately	$ 106.83
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	241760403		Bearing,hinge ,top			Immediately	$ 19.13
27A	241812702		Retainer,tall Bottle				$ 18.38
NI	241780403		Liner,bin,bin				$ 28.77
