SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker

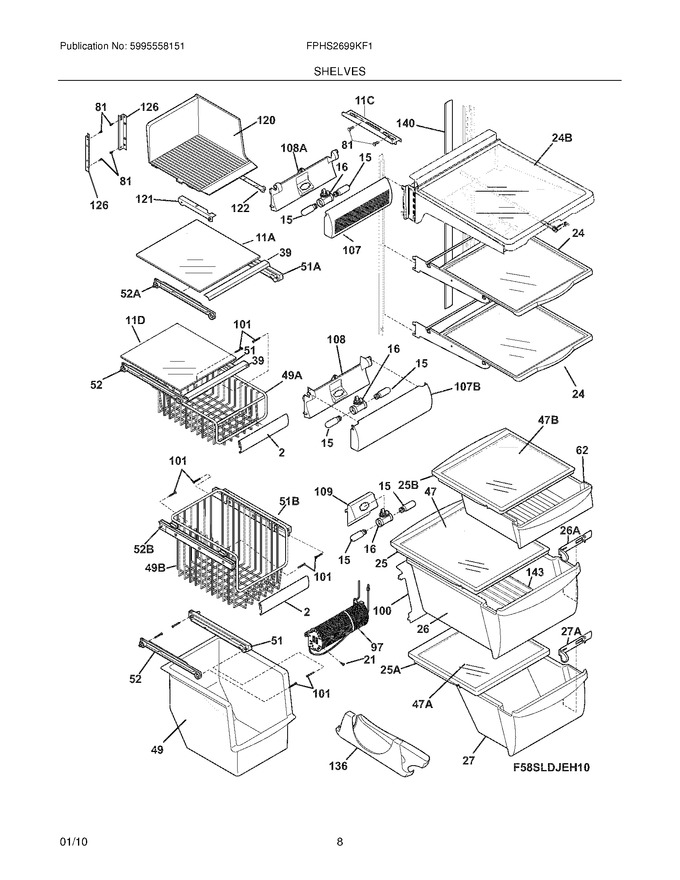

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510607		Trim-basket		Appelez-nous	-
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	241622802		Socket-light,frz Light				$ 65.93
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240350150		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350136)				$ 176.70
25	240599301		Cover-crisper Pan,upper   (Replaces: 240599302)			Immediately	$ 94.38
26	240351061		Pan-crisper,upper   (Replaces: 240351062)			Immediately	$ 110.01
27	240351240		Pan-crisper,lower   (Replaces: 240351241)				$ 203.45
39	240367602		Trim-shelf,front				$ 45.36
47	240350649		Insert-pan Cover,glass			Immediately	$ 123.89
49	240564401		Basket-sliding			Immediately	$ 158.90
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
62	241969607		Pan-meat   (Replaces: 241969602)				$ 204.47
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	242220510		Water Tank   (Replaces: 241532007)				$ 119.78
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
107	241753601		Shield-light,upper				$ 30.91
108	241513301		Cover-wiring,meat Pan Light				$ 64.17
109	241513202		Base-crisper Light Socket				$ 65.21
120	241691901		Shelf-ice Cream				$ 79.62
121	241561001		Rail-ice Cream Shelf,lh				$ 101.63
122	241692001		Rail-ice Cream Shelf,lh				$ 85.69
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
136	241657701		Dispenser-can,white				$ 57.41
140	241812501		Channel,wtr Tube Cover		Appelez-nous	-
143	240423301		Divider-crisper Pan				$ 144.53
11A	240350604		Shelf-freezer,glass ,upper				$ 114.52
11C	240324101		Shelf-pizza				$ 59.91
11D	240350605		Shelf-freezer,glass ,lower				$ 106.93
24B	240350150		Shelf-``spill-safe``,``aspect`` ,complete   (Replaces: 240424614)				$ 176.70
25A	240350903		Cover-crisper Pan,lower			Immediately	$ 91.99
25B	241969501		Cover-meat Pan			Immediately	$ 96.21
26A	241638201		Control-humidity				$ 17.69
27A	240362201		Control-humidity				$ 69.46
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
47B	240443384		Insert-pan Cover,glass				$ 151.68
49A	240530502		Basket-sliding,upper ,half				$ 201.08
49B	240530504		Basket-sliding,upper ,full				$ 207.81
51A	240395502		Hanger-basket,rh				$ 73.00
51B	240579801		Hanger-basket,rh				$ 61.27
52A	240395602		Hanger-basket,lh				$ 61.66
52B	240579802		Hanger-basket,lh				$ 60.01
F107	241513402		Shield-light,meat Pan				$ 59.90
F108	241753701		Housing-light,upper ,fresh Food				$ 22.58
F26A	241638101		Frame-humidity Control				$ 51.74
FNI	241797601		Harness-wiring		Appelez-nous	-
NI	241781601		Seal-return Air				$ 9.10
NI	241868101		Air Guide		Appelez-nous	-
NI	241935556		Energy Guide		Appelez-nous	-
NI	241595202		Clip-slide,pan-crisper				$ 18.20
NI	240349801		Clip-slide,pan-crisper				$ 20.48
NI	240362101		Clip-slide,cover-crisper				$ 47.03

    View Diagram in Separate Window       Print Part List
