SELECT A DIAGRAM
01 - Body/oven
02 - Door/drawer
03 - Gas Controls

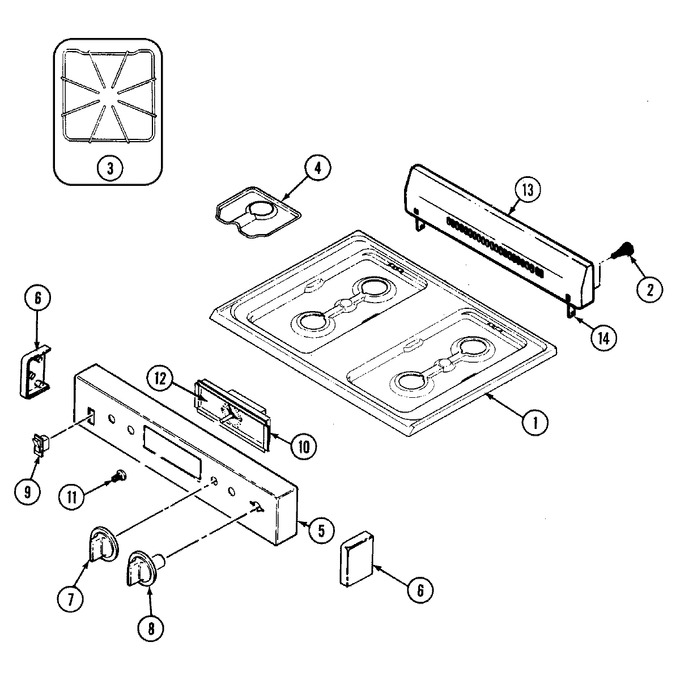

04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001F098-84 | Top, Main (alm) |
|
- | |||||
| 2 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 3 | 2003W026-00 | Grate (blk) | 01 |
|
- | ||||
| 4 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 01 |
|
$ 95.86 | ||||
| 5 | 7101P311-60 | Screw----na | 01 |
|
- | ||||
| 5 | 3604F198-51 | Shield, Manifold Cover | 01 |
|
- | ||||
| 5 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 5 | 2616F097-09 | Panel, Control (black) | 01 |
|
- | ||||
| 6 | 7112P092-60 | Clip, Spring Grip | 01 |
|
- | ||||
| 6 | 7713P018-60 | End Cap, Panel (blk) | 01 |
|
- | ||||
| 7 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P062-60) | 01 |
|
$ 25.06 | ||||
| 8 | 7731P065-60 | Knob, Thermostat | 01 |
|
- | ||||
| 9 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P247-60) | 01 |
|
$ 91.35 | ||||
| 10 | 3801F314-51 | Bracket, Clock | 01 |
|
- | ||||
| 10 | 7602P109-60 | Clock | 01 |
|
- | ||||
| 10 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 11 | 7711P466-60 | Knob, Clock | 01 |
|
$ 14.72 | ||||
| 12 | 7902P034-60 | Glass | 01 |
|
- | ||||
| 13 | 2601W349-09 | Backguard | 01 |
|
- | ||||
| 14 | 3801F243-51 | Bracket, Control Panel (lt) | 01 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 14 | 3801F242-51 | Bracket, Control Panel (rt) | 01 |
|
- | ||||
| 15 | 8113P042-60 | Manual, Use & Care | 01 |
|
- | ||||
| 15 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
