SELECT A DIAGRAM

02 - Door Parts


03 - Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Shelves And Supports


08 - System And Automatic Defrost Parts

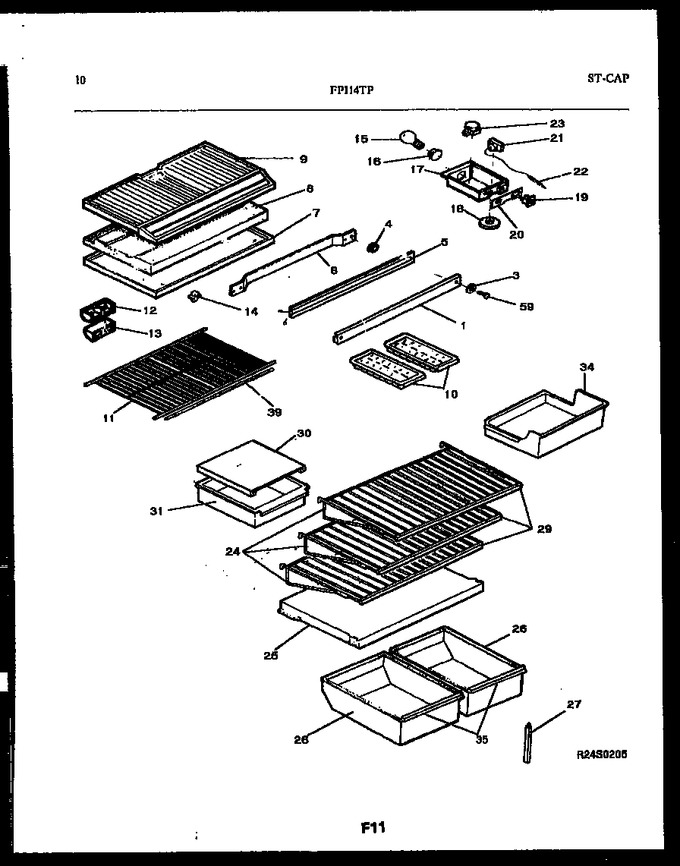

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200465		Mullion, White		Appelez-nous	-
3	5308003607		Washer, No. 10 Steel, 7/23 X 7/16 Od				$ 1.00
4	3001370		Spacer-mullion Mtg, (2)		Appelez-nous	-
5	5308017408		Heater-mullion		Appelez-nous	-
6	5308003604		Strap, Mullion Mtg		Appelez-nous	-
7	5303015448		Top Panel-refr, W/ Snap Bushing		Appelez-nous	-
8	5308000759		Divider, Styrofoam		Appelez-nous	-
9	5308000748		Bottom Panel-freezer		Appelez-nous	-
10	01121808		Ice Tray, Plastic		Appelez-nous	-
11	5308009974		Shelf-freezer		Appelez-nous	-
12	5308000071		Deflector-air		Appelez-nous	-
13	5303001546		Cover - Air Deflector		Appelez-nous	-
14	5309918806		Switch, Light			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
16	5308000129		Socket-light/lamp				$ 62.16
17	5308009730		Box-control		Appelez-nous	-
18	08006978		Knob-temp Control		Appelez-nous	-
19	5308016615		Switch-energy Saver		Appelez-nous	-
20	08006988		Label, Control Box		Appelez-nous	-
21	5308015762		Control, Temperature		Appelez-nous	-
22	5303916855		Sleeve-plastic Tube				$ 60.96
23	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
24	5303209980		Shelf-cantilever, Refr, (3)		Appelez-nous	-
11A	5308000244		Support-frzr Shelf, (4) (non-illustrated)		Appelez-nous	-
11B	5303001290		Screw-shelf Support, C.r. Flat Head, 8(ab) X 1-3/8, (4)(non-illustrated)		Appelez-nous	-
17A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
7A	5303001380		Screw		Appelez-nous	-
7B	5303212518		Bushing, Snap-in, Plastic (non-illustrated)		Appelez-nous	-
8A	3001383		Wiring Harness, Control/divider (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
