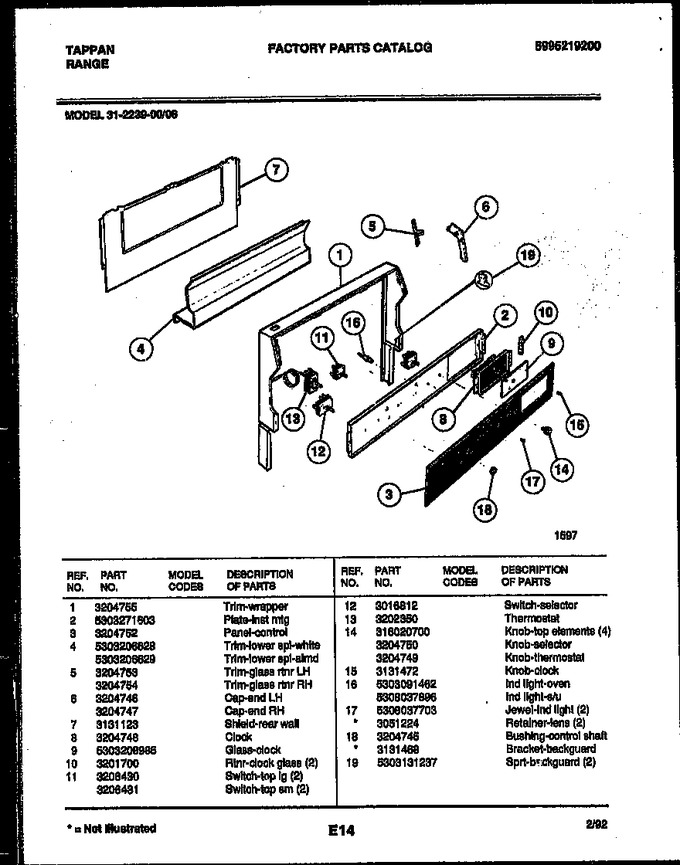

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204755 | Trim, Wrapper |
|
- | |||||
| 2 | 5303271603 | Plate-inst Mtg |
|
- | |||||
| 3 | 3204752 | Panel - Control |
|
- | |||||
| 5 | 3204753 | Trim-glass Rtnr Lh |
|
- | |||||
| 6 | 3204746 | Cap-end Lh |
|
- | |||||
| 7 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 8 | 3204748 | Clock |
|
- | |||||
| 9 | 5303208985 | Glass-clock |
|
- | |||||
| 10 | 3201700 | Rtnr-clock Glass (2) |
|
- | |||||
| 11 | 3206430 | Switch-top Lg (2) |
|
- | |||||
| 12 | 3016812 | Switch-selector |
|
- | |||||
| 13 | 3202350 | Thermostat |
|
- | |||||
| 14 | 316020700 | Knob-top Elements (4) |
|
- | |||||
| 15 | 3131472 | Knob-clock |
|
- | |||||
| 16 | 5303091462 | Ind Light-oven |
|
- | |||||
| 17 | 5308037703 | Jewel-ind Light (2) |
|
- | |||||
| 18 | 3204745 | Bushing, Control Shaft |
|
- | |||||
| 19 | 5303131237 | Sprt-backguard (2) |
|
- | |||||
| 11A | 3206431 | Switch-top Sm (2) |
|
- | |||||
| 14A | 3204750 | Knob - Selector |
|
- | |||||
| 14B | 3204749 | Knob - Thermostat |
|
- | |||||
| 16A | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 17A | 3051224 | Retainer-lens (2) (non-illustrated) |
|
- | |||||
| 18A | 3131468 | Bracket-backguard (non-illustrated) |
|
- | |||||
| 4A | 5303206629 | Trim-lower Spl-almd |
|
- | |||||
| 5A | 3204754 | Trim-glass Rtnr Rh |
|
- | |||||
| 6A | 3204747 | Cap-end Rh |
|
- |
