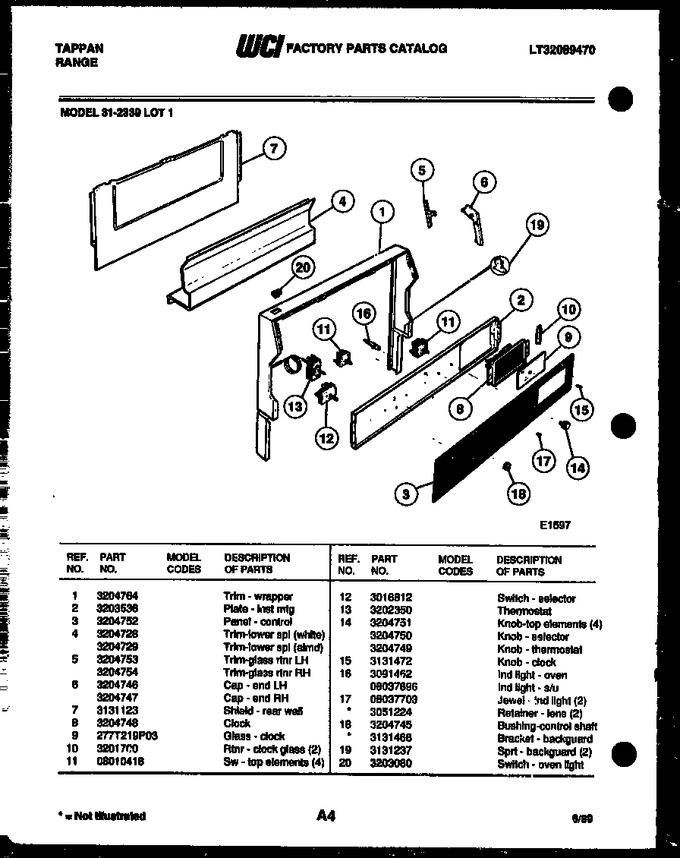

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204764		Trim-wrapper		Appelez-nous	-
2	3203536		Plate - Inst. Mtg		Appelez-nous	-
3	3204752		Panel - Control		Appelez-nous	-
4	3204728		Trim-lower Spl (white)		Appelez-nous	-
5	3204753		Trim-glass Rtnr Lh		Appelez-nous	-
6	3204746		Cap-end Lh		Appelez-nous	-
7	3131123		Shield, Rear Wall		Appelez-nous	-
8	3204748		Clock		Appelez-nous	-
9	277T219P03		Glass-clock		Appelez-nous	-
10	3201700		Rtnr-clock Glass (2)		Appelez-nous	-
11	08010418		Switch-top Elements (4)		Appelez-nous	-
12	3016812		Switch-selector		Appelez-nous	-
13	3202350		Thermostat		Appelez-nous	-
14	3204751		Knob-top Elements (4)		Appelez-nous	-
15	3131472		Knob-clock		Appelez-nous	-
16	3091462		Ind Light - Oven		Appelez-nous	-
17	08037703		Lens		Appelez-nous	-
18	3204745		Bushing, Control Shaft		Appelez-nous	-
19	3131237		Sprt - Backguard (2)		Appelez-nous	-
20	3203080		Switch - Oven Light		Appelez-nous	-
14A	3204750		Knob - Selector		Appelez-nous	-
14B	3204749		Knob - Thermostat		Appelez-nous	-
16A	08037896		Ind Light - S/u		Appelez-nous	-
17A	3051224		Retainer-lens (2) (non-illustrated)		Appelez-nous	-
18A	3131468		Bracket-backguard (non-illustrated)		Appelez-nous	-
5A	3204754		Trim-glass Rtnr Rh		Appelez-nous	-
6A	3204747		Cap-end Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
