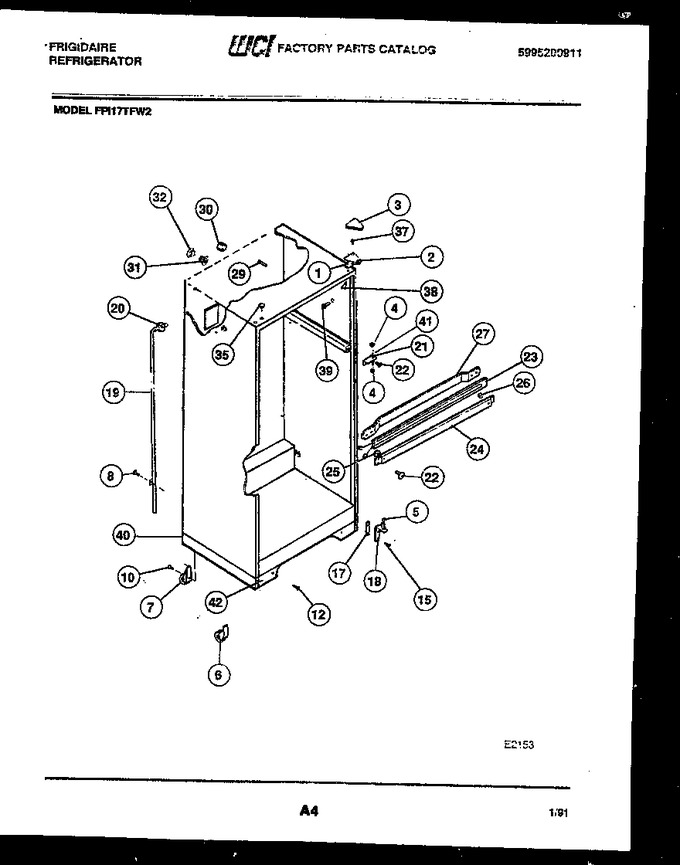

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 2 | 5308012843 | Bracket-hinge Upper |
|
$ 71.47 | |||||
| 3 | 5303001666 | Cover - Hinge-coffee |
|
- | |||||
| 4 | 5308000007 | Washer, Nylon (2) |
|
- | |||||
| 5 | 5308000186 | Washer, Nylon |
|
Immediately | $ 6.02 | ||||
| 6 | 5303212490 | Roller Assy, Front, (2) |
|
- | |||||
| 7 | 5308009773 | Roller Assy, Rear, (2) |
|
- | |||||
| 8 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 10 | 08009762 | Screw-1/4-28 X 2 3/8 (2) |
|
- | |||||
| 12 | 5303212598 | Bolt-1/4-28 X 1/2 |
|
- | |||||
| 15 | 5303001320 | Screw |
|
- | |||||
| 17 | 5303212488 | Shim-lower Hinge |
|
$ 5.25 | |||||
| 18 | 5303212489 | Hinge-lower Bracket |
|
- | |||||
| 19 | 5303210377 | Tube-drain & Seal Ring Assy |
|
$ 109.31 | |||||
| 20 | 5303207353 | Ring - Seal |
|
$ 6.81 | |||||
| 21 | 5303001369 | Bracket- Center Hinge |
|
- | |||||
| 22 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 23 | 5308017408 | Heater-mullion |
|
- | |||||
| 24 | 3916133 | Mullion, Coffee |
|
- | |||||
| 25 | 5303206754 | Washer-no. 10 Steel (2) |
|
- | |||||
| 26 | 5303200464 | Spacer (2) |
|
- | |||||
| 27 | 5308003604 | Strap Mullion |
|
- | |||||
| 29 | 5308000097 | Support (2) |
|
- | |||||
| 30 | 5303001198 | Tube, Rubber (2) |
|
- | |||||
| 31 | 5303001286 | Ferrule-inner |
|
- | |||||
| 32 | 5303001287 | Ferrule-outer |
|
- | |||||
| 35 | 5303001679 | Button-plug-coffee |
|
- | |||||
| 37 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 38 | 5303202339 | Trim-corner-coffee |
|
- | |||||
| 39 | 5304509705 | Grommet-shelf Lh (2) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 40 | 5303269889 | Base-cabinet |
|
- | |||||
| 41 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 42 | 5308012296 | Tapping-plate (2) |
|
$ 47.44 | |||||
| *40313 | 5308016571 | Plug-freezer Liner |
|
$ 4.79 | |||||
| 18A | 5303001320 | Screw-hinge Mtg (6) (non-illustrated) |
|
- | |||||
| 18B | 5303212596 | Tapping Plate/gusset, Lh (non-illustrated) |
|
- | |||||
| 18C | 5303212597 | Tapping Plate/gusset, Rh (non-illustrated) |
|
- | |||||
| 39A | 5304500407 | Grommet-shelf Rh (2) (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 6A | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 |
