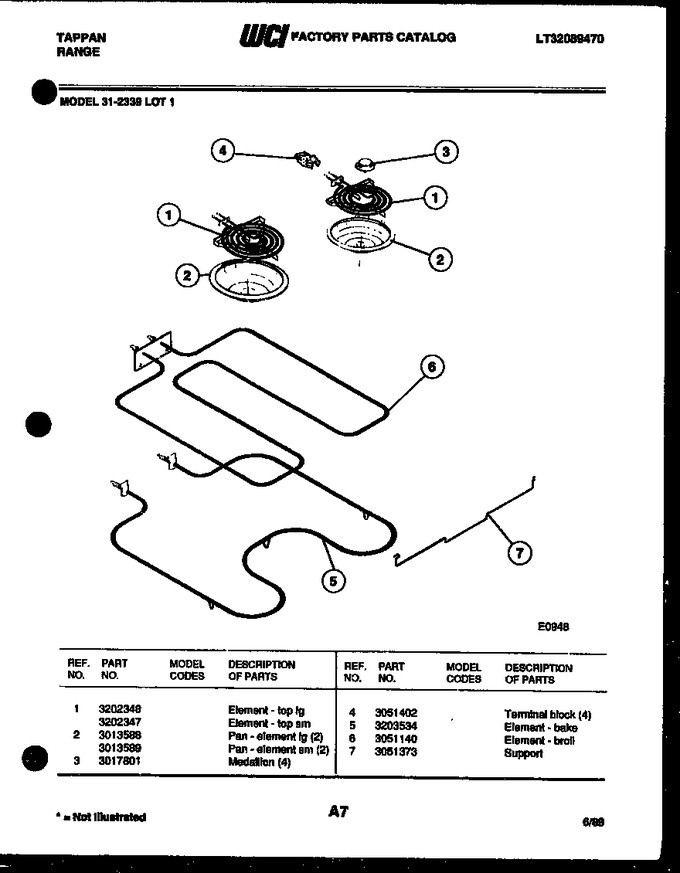

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202348 | Element - Top Lg |
|
- | |||||
| 2 | 3013588 | Pan-element Lg. (2) |
|
- | |||||
| 3 | 3017801 | Medallion (4) |
|
- | |||||
| 4 | 3051402 | Terminal Block (4) |
|
- | |||||
| 5 | 316075103 | Element-bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 6 | 3051140 | Element, Broil |
|
- | |||||
| 7 | 3051373 | Support |
|
- | |||||
| 1A | 3202347 | Element - Top Sm |
|
- | |||||
| 2A | 3013589 | Pan-element-sm (2) |
|
- |
