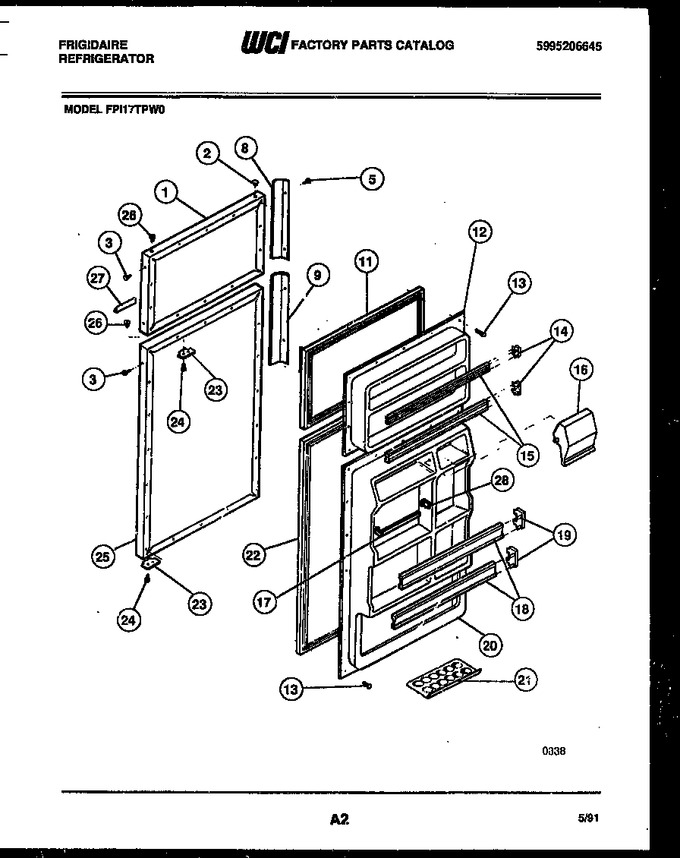

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5318115809		Panel-freezer-wheat		Appelez-nous	-
2	5303272521		Trim-freezer Shelf		Appelez-nous	-
2	5308000176		Button Plug-wheat		Appelez-nous	-
3	5308000180		Button Plug-wheat		Appelez-nous	-
5	5303272567		Screw Handle-wheat		Appelez-nous	-
8	5303272665		Handle-freezer Complete-wheat		Appelez-nous	-
9	5303272662		Handle-refrigerator Complete-wheat		Appelez-nous	-
11	5303001304		Gasket, Freezer		Appelez-nous	-
12	3018865		Panel-freezer Inner		Appelez-nous	-
13	5308002748		Screw		Appelez-nous	-
14	5303323480		Support, Rack, Rh (2)   (Replaces: 5303017378)				$ 14.18
15	5303018866		Rack-door (2)		Appelez-nous	-
16	3018867		Door-dairy		Appelez-nous	-
17	3018423		Rack-door (2)		Appelez-nous	-
18	3203927		Rack-door (2)		Appelez-nous	-
19	5303325990		Support, Rack, Rh (2)   (Replaces: 5303203262)			Immediately	$ 17.01
20	3200478		Panel-refr, Inner		Appelez-nous	-
21	5303018932		Tray-egg		Appelez-nous	-
22	5303017373		Gasket-refr		Appelez-nous	-
23	5308000255		Stop-door-freezer				$ 42.20
24	5308011745		Screw				$ 10.38
25	3916441		Panel-refr-wheat		Appelez-nous	-
26	5308012007		Bearing, Hinge (8)		Appelez-nous	-
27	3201526		Nameplate		Appelez-nous	-
28	5303323480		Support, Rack, Rh   (Replaces: 5303017378)				$ 14.18
*46207	5303323481		Support, Rack, Lh   (Replaces: 5303017381)			Immediately	$ 14.18
14A	5303323481		Support-rack-lh (2) (non-illustrated)   (Replaces: 5303017381)			Immediately	$ 14.18
19A	5303203263		Support-rack Lh (2) (non-illustrated)		Appelez-nous	-
23A	5303212491		Stop-door-refrigerator (non-illustrated)		Appelez-nous	-
