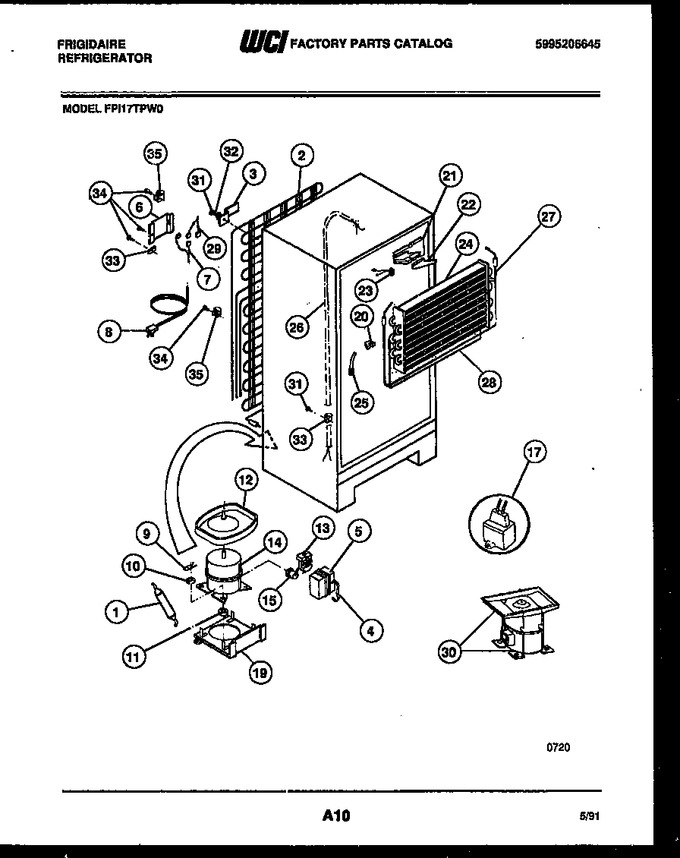

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
2	5303001341		Condenser		Appelez-nous	-
4	5303006412		Strap		Appelez-nous	-
5	5303006411		Cover, Terminal		Appelez-nous	-
6	5303001197		Cover-wiring		Appelez-nous	-
7	5303001347		Harness-compr		Appelez-nous	-
8	5316254901		Service Cord		Appelez-nous	-
9	5308003596		Clip, Mounting (4)				$ 6.62
10	5308003633		Washer-mtg (4)				$ 35.67
11	5308008778		Grommet-mtg (4)		Appelez-nous	-
12	5300184715		Defrost Pan		Appelez-nous	-
13	5303007173		Relay				$ 207.43
14	5303916004		Compressor		Appelez-nous	-
15	3201680		Overload		Appelez-nous	-
17	5303916391		Capacitor-run Kit		Appelez-nous	-
19	5308013663		Plate-compr Mtg		Appelez-nous	-
20	5308017227		Block Evaporator Lh		Appelez-nous	-
21	5308013648		Block Evaporator Rh		Appelez-nous	-
22	5303007287		Plug Evaporator Block Rh		Appelez-nous	-
23	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
24	5308009756		Evaporator Coil		Appelez-nous	-
25	5308000110		Strap-aluminum (2)			Immediately	$ 59.82
26	5308000728		Heat Exchanger		Appelez-nous	-
27	5308009754		Heater-defrost				$ 157.76
28	5316651102		Insulator, Plastic				$ 53.04
29	3018900		Harness-divider		Appelez-nous	-
30	5303916001		Pan Retainer Kit				$ 78.75
31	5308000039		Screw		Appelez-nous	-
32	5308009617		Washer - No. 10 Ext Tooth		Appelez-nous	-
33	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
34	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
35	5303001199		Clamp				$ 65.92
*46217	5300189383		Hot Tube Repair Kit				$ 613.15
*46217	5308017610		Sound Tape		Appelez-nous	-
17A	5308000039		Screw		Appelez-nous	-
