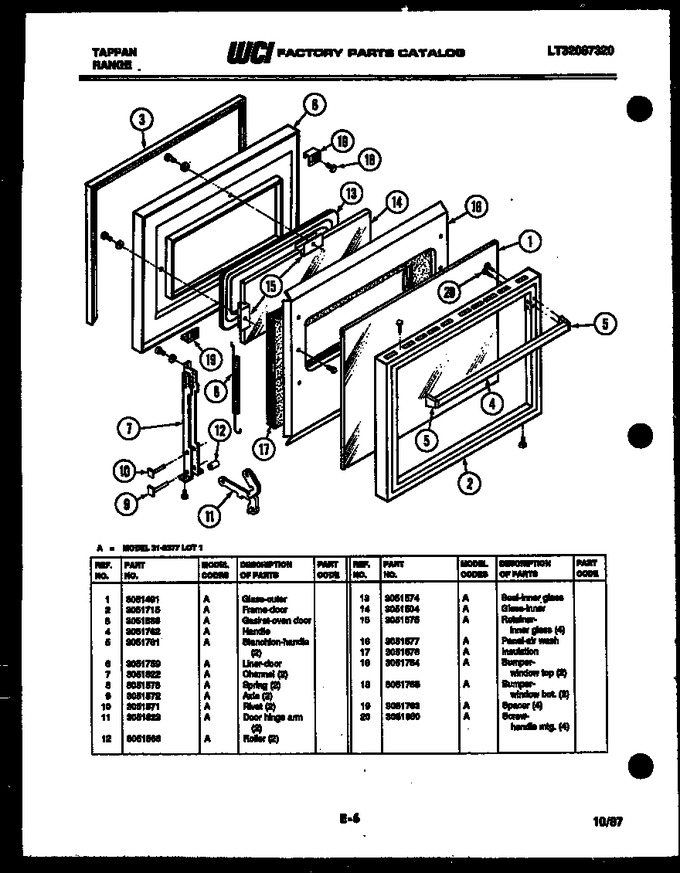

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051491 | Glass-outer |
|
- | |||||
| 2 | 3051715 | Frame-door |
|
- | |||||
| 3 | 3051586 | Gasket-oven Door |
|
- | |||||
| 4 | 3051762 | Handle |
|
- | |||||
| 5 | 3051761 | Stanchion-handle (2) |
|
- | |||||
| 6 | 3051759 | Liner-door |
|
- | |||||
| 7 | 3051822 | Channel (2) |
|
- | |||||
| 8 | 3051573 | Spring (2) |
|
- | |||||
| 9 | 3051572 | Axle (2) |
|
- | |||||
| 10 | 3051571 | Rivet (2) |
|
- | |||||
| 11 | 3051823 | Door Hinge Arm (2) |
|
- | |||||
| 12 | 3051566 | Roller (2) |
|
- | |||||
| 13 | 3051574 | Seal, Inner Glass |
|
$ 36.58 | |||||
| 14 | 3051504 | Glass-inner |
|
- | |||||
| 15 | 3051575 | Retainer, Inner Glass (4) |
|
- | |||||
| 16 | 3051577 | Panel-airwash |
|
- | |||||
| 17 | 3051576 | Insulation |
|
- | |||||
| 18 | 3051764 | Bumper-window Top (2) |
|
- | |||||
| 18 | 3051765 | Bumper-window Bot. (2) |
|
- | |||||
| 19 | 3051763 | Spacer (4) |
|
- | |||||
| 20 | 3051860 | Screw-handle Mtg. (4) |
|
- |
