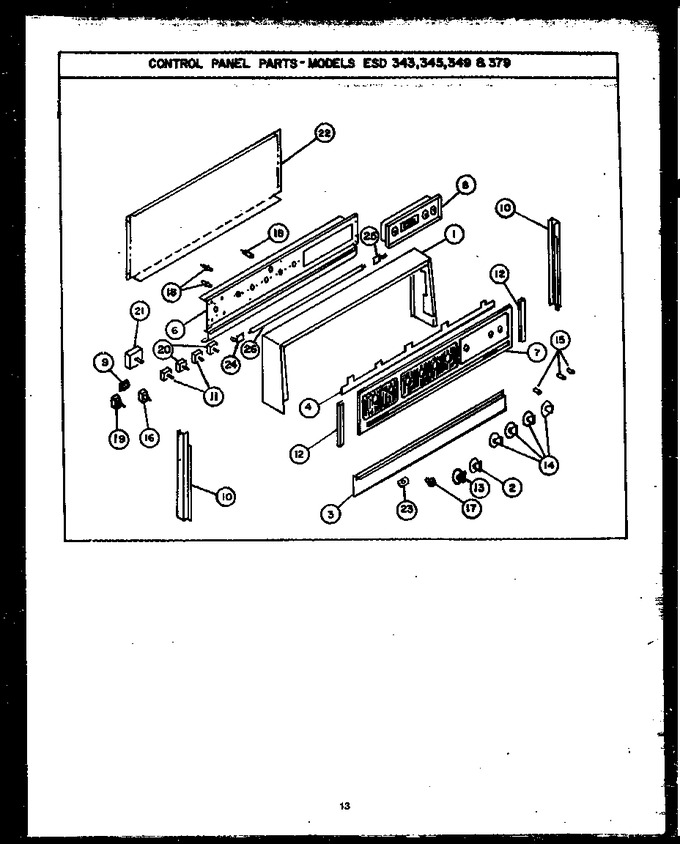

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y62987		Frame		Appelez-nous	-
2	61426		Knob, Selector				$ 59.99
3	Y63705		Trim, Piece Bottom		Appelez-nous	-
4	63693		Trim Piece Top		Appelez-nous	-
6	Y63682		Panel - Control Mtg.		Appelez-nous	-
7	Y63525		Glass - Control Pane		Appelez-nous	-
8	63447		Clock		Appelez-nous	-
9	63008		Selector Switch		Appelez-nous	-
10	Y63691		Support, Control Panel		Appelez-nous	-
11	67442		Switch, Infinite, 6-inch		Appelez-nous	-
12	Y63575		Channel, Glass		Appelez-nous	-
13	Y63437		Knob - Oven Control		Appelez-nous	-
14	Y63440		Knob - Top Element		Appelez-nous	-
15	Y63441		Knob - Clock		Appelez-nous	-
16	65951		Switch, Oven Light		Appelez-nous	-
17	65051		Bezel, Switches				$ 11.25
18	65822		Indicator Light, Clean				$ 199.26
19	Y67947		Switch, Fluorescent Light		Appelez-nous	-
20	67443		Switch, Infinite, 8-inch		Appelez-nous	-
21	Y63416		Thermostat, Oven		Appelez-nous	-
22	Y63690		Rear Cover Plate		Appelez-nous	-
23	65052		Speed Nut		Appelez-nous	-
24	61241		Lamp Socket Support - L.h.		Appelez-nous	-
25	61242		Lamp Socket Support - R.h.		Appelez-nous	-
26	WPY0067945		Lamp, Fluorescent   (Replaces: 67945)				$ 29.33
