01 - Cabinet Assy


02 - Control Panel Parts


03 - Drawer Assy


04 - Electrical Components


05 - Main Top And Oven Assy


06 - Oven Door

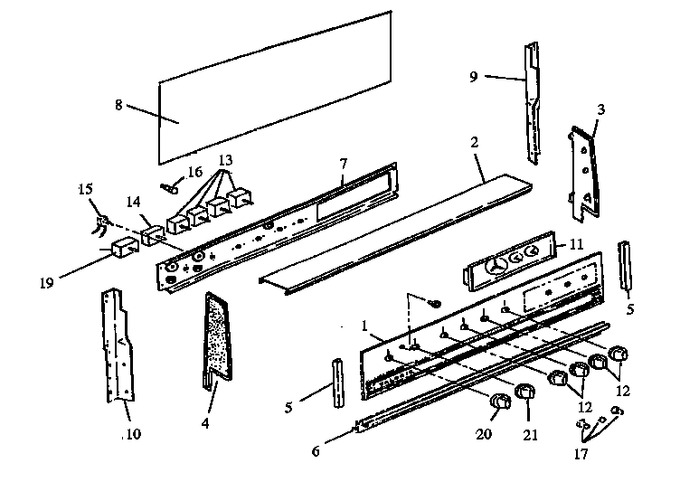

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0308016		Glass, Bkgd		Appelez-nous	-
1	0305303		Glass Control Panel		Appelez-nous	-
2	305007B		Top Trim Backguard		Appelez-nous	-
3	0304932		Kit, End Cap Bkgd		Appelez-nous	-
3	304932B		End Cap, R.h.		Appelez-nous	-
4	304931B		End Cap, L.h.		Appelez-nous	-
4	0304931		Kit, End Cap Bkgd		Appelez-nous	-
5	0059768		Channel, Glass (black)		Appelez-nous	-
6	304976B		Lower Trim Backguard		Appelez-nous	-
7	Y0305284		Backguard.cont Pnl		Appelez-nous	-
7	Y0306546		Panel, Cont.bkgd		Appelez-nous	-
8	0305447		Cover,backguard		Appelez-nous	-
9	0304124		Support, Bkgd (rh)		Appelez-nous	-
10	Y0304123		Support Backguard Lh		Appelez-nous	-
11	0306288		Clock, Analog (blk)		Appelez-nous	-
12	Y0060235		Knob, Top Element		Appelez-nous	-
12	0308327		Knob		Appelez-nous	-
13	0071745		Switch, Infinite		Appelez-nous	-
14	Y0063008		Switch, Selector		Appelez-nous	-
15	0060303		Kit, Light Switch		Appelez-nous	-
16	Y0071820		Indicator Light		Appelez-nous	-
17	307138B		Knob, Clock		Appelez-nous	-
17	308307B		Knob, Clock		Appelez-nous	-
19	Y0063416		Thermostat		Appelez-nous	-
20	0059909		Knob, Oven Control/thermostat		Appelez-nous	-
20	0308329		Knob, Therm		Appelez-nous	-
21	0060236		Selector Knob		Appelez-nous	-
21	0308328		Selector Knob		Appelez-nous	-
NI	Y0041778		Screw 6-32x3/16 Slo Cook Sw		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
NI	0065051		Bezel, Panel Switch		Appelez-nous	-
NI	Y0065052		Speednut		Appelez-nous	-
NI	0069187		Tape, Seal 1=1ft		Appelez-nous	-
NI	Y0305443		Bracket,backgrd Endcap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
