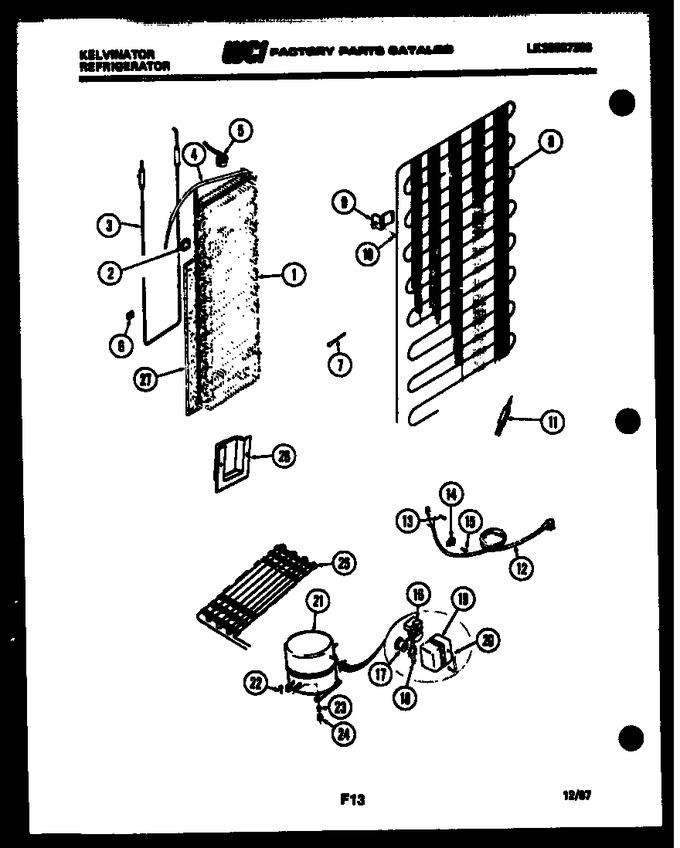

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Racks And Trays


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G189612		Evaporator		Appelez-nous	-
2	G169493		Coil Block		Appelez-nous	-
3	G157191		Heater, Defrost		Appelez-nous	-
4	G189613		Heat Exchanger		Appelez-nous	-
5	G166153		Thermostat-defrst		Appelez-nous	-
6	G167363		Support, Heater		Appelez-nous	-
7	G165546		Strap, Evaporator		Appelez-nous	-
8	G188725		Condenser		Appelez-nous	-
9	G164637		Bracket, Cond. Mtg. (4)		Appelez-nous	-
10	G160578		Screw		Appelez-nous	-
11	G186717		Drier		Appelez-nous	-
12	G162549-01		Service Cord		Appelez-nous	-
13	G187009		Screw-ground		Appelez-nous	-
14	G27669		Clamp-cord		Appelez-nous	-
15	G187009		Screw-mtg		Appelez-nous	-
16	G182225-04		Relay		Appelez-nous	-
17	G188727		Overload		Appelez-nous	-
18	G188957		Clip-overload		Appelez-nous	-
19	G166056		Cover, Terminal		Appelez-nous	-
20	G166057		Strap-cover		Appelez-nous	-
21	G189470		Compressor W/ Electricals		Appelez-nous	-
22	G183344		Screw-mtg (3)		Appelez-nous	-
23	G154588		Sleeve (3)		Appelez-nous	-
24	G177617		Grommet (4)		Appelez-nous	-
25	G188724		Defrost Plate		Appelez-nous	-
26	G183584		Cover, Wiring		Appelez-nous	-
27	G169641		Insulator-evap (non-illustrated)		Appelez-nous	-
*20583	G189376		Hot Tube Repair Kit		Appelez-nous	-
26A	G165845		Wiring Harness-compr & Lights (non-illustrated)		Appelez-nous	-
