Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 316014701 Control Panel Appelez-nous -
2 5303272309 Clock T.o.d. Appelez-nous -
3 316032400 Thermostat Appelez-nous -
4 316021800 Cap-end-rh Special Order $ 81.32

5 316015003 Brkt-clock Mtg Appelez-nous -
6 316023102 Channel-supt-b/g-rh Appelez-nous -
7 316014801 Extrusion-pnl B/g Appelez-nous -
8 316023103 Channel-supt-b/g-lh Appelez-nous -
9 5303935086 Switch-inf (small)   (Replaces: 316021500) In-Stock Immediately $ 51.95

9 316436001 Switch-inf (large)   (Replaces: 316021501) In-Stock Immediately $ 51.68

10 316021801 Cap-end-lh Special Order $ 94.29

11 5303272305 Button Knob Round Special Order $ 38.80

12 316015200 Knobs-control (6) Appelez-nous -
13 316015701 Shield-rear Wall B/g Appelez-nous -
14 316022502 Indicator Light-250 Volt Appelez-nous -
15 316040200 Lens-indicator Light Appelez-nous -
16 316015901 Shield-inner Appelez-nous -
17 316032500 Switch, Selector Appelez-nous -
18 5303208662 Switch-rocker Appelez-nous -
19 5303272306 Button-clock Appelez-nous -

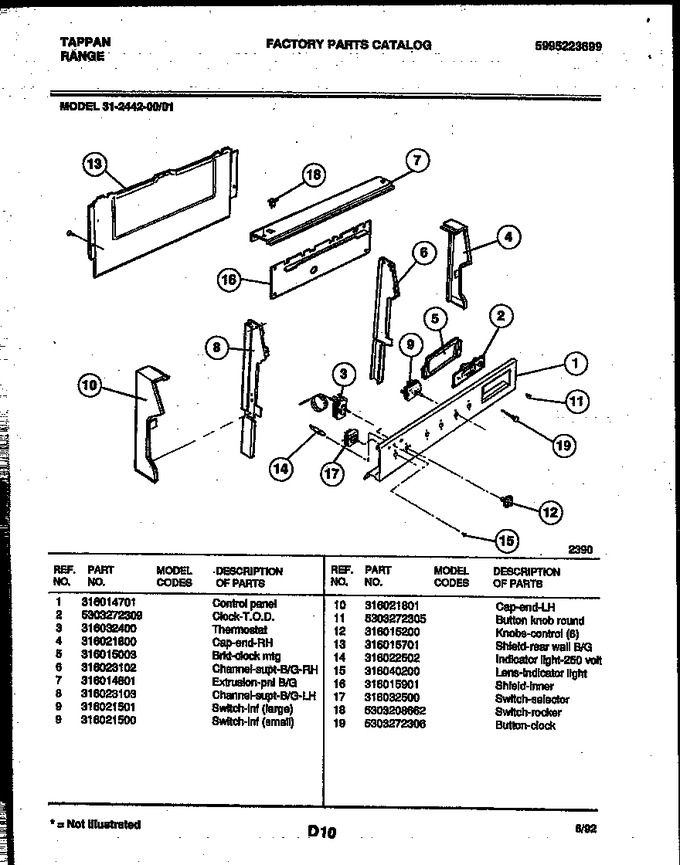

    View Diagram in Separate Window     Print Icon   Print Part List
