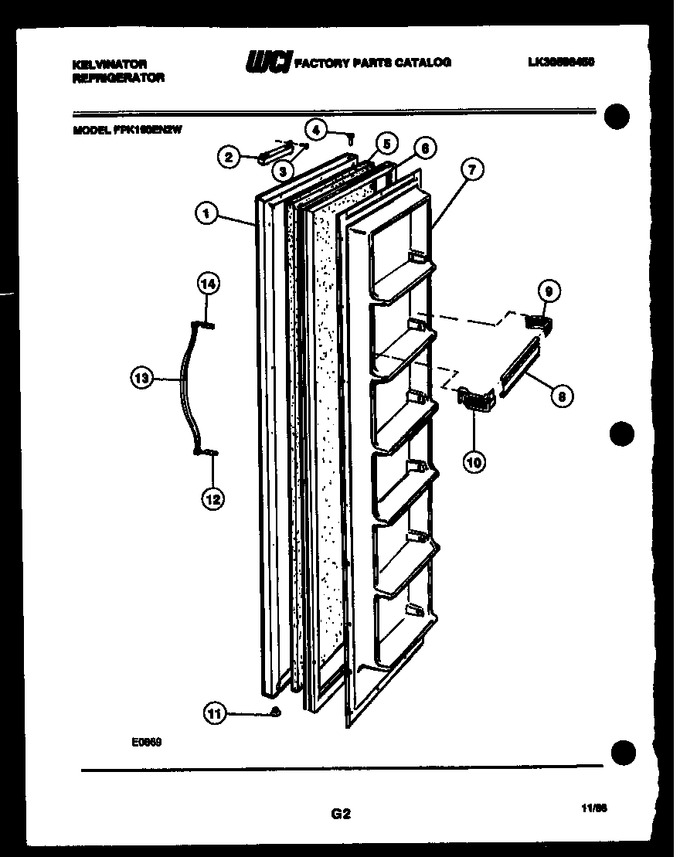

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3916189		Freezer Door-wheat		Appelez-nous	-
2	3200272		Door Closer		Appelez-nous	-
3	G169729		Screw-closer Mounting		Appelez-nous	-
4	G183139		Hinge Bearing-upper		Appelez-nous	-
5	G89634		Insulation (bulk)		Appelez-nous	-
6	3200474		Gasket-freezer		Appelez-nous	-
7	G166891-03		Inner Panel-freezer		Appelez-nous	-
8	3016228		Rack-freezer Door (6)		Appelez-nous	-
9	G161018-01		Suppor-rs (6)		Appelez-nous	-
10	G161080-01		Support Ls (6)		Appelez-nous	-
11	G152308-01		Plug-door Bottom		Appelez-nous	-
12	G189452-01		Handle End-bottom		Appelez-nous	-
13	G189455-01		Grip-handle		Appelez-nous	-
14	G189451-01		Handle End-top		Appelez-nous	-
*50714	G185566		Screw		Appelez-nous	-
13A	G189456-03		Trim Insert-grip (non-illustrated)		Appelez-nous	-
13B	G191430		Spacer-handle (2) (non-illustrated)		Appelez-nous	-
13C	G172321		Screw-spacer Mounting (2) (non-illustrated)		Appelez-nous	-
13D	3016230		Anchor Nut-spacer (2) (non-illustrated)		Appelez-nous	-
4A	G183138		Hinge Bearing-lower (non-illustrated)		Appelez-nous	-
7A	G162585		Screw		Appelez-nous	-
